Beveiligingskleppen

1 2 96 48 24 12 4 Nr. A-Z

E.241

E.044

Brass safety valve adjustable from 1 to 10 bar with rubber seat.

E.245

Brass safety valve adjustable from 1 to 10 bar with rubber seat.

Discharge pressure: 3 bar. For IMMERGAS boilers.

E.011

Brass safety valve for solar systems with female inlet and larger female discharge. CE approved.

Max. temp. 150°C Suitable also for water mixed with glycol antifreeze upto 50% as from DIN 4757.

E.033

Combined temperature and pressure safety valve for safe guarding accumulation tanks

Suitable for sanitary water, vertical or horizontal installation with drainage facing downward. Conformty PED 97/23 CE Drainage / exhaust temp 92°C (+3°C).

E.060

Luchtafscheider V.V.

Met koppelingen voor: luchtafscheider, veiligheidsventiel, expansievat, manometer, thermometer.

E.030

Nylontrichter mit Sichtentleerung.

E.057

Ondersteuningsbeugel voor expansievat en veiligheidsaccessoires voor gesloten installatiecircuits.

Voorgemonteerd & klaar voor gebruik, compleet met steunbeugel met 3/4´ koppeling; 3/4´ koppeling voor boiler, luchtafscheider art. E.000.02 met automatische afsluiter E.005.02, 3 bar veiligheidsventiel, isolerend ventiel op expansievatkoppeling om zijn verwijdering toe te staan door automatische afsluiting van het systeem . Geschikt voor installaties tot 50 kW.

E.231

Plastic safety valve with quick coupling Ø 14 and drain outlet with hose connector for ARISTON - CHAFFOTEAUX boilers and other brands. - 7 bar.

E.243

Plastic safety valve with rapid connection diameter 20mm with O-ring, exhaust connection with hose connection diameter 15mm – exhaust pressure 3 bar.

E.230

Quick coupling plastic safety valve Ø 14 and 3/8 ´M. threaded drain outlet for ARISTON - BOSCH - CHAFFOTEAUX boilers and other brands. - 3 bar.

E.238

Quick release plastic safety valve Ø 20 for ROCA - LAURA boilers and other brands. With ½ ”F. threaded drain outlet - 3 bar.

E.234

Quick-release plastic safety valve Ø 18 and outlet with multi-brand hose connection. - 3 bar

E.233

Quick-release plastic safety valve Ø 18 with ½ ”M. multi-brand threaded outlet. - 3 bar

E.235

Quick-release plastic safety valve Ø 20 with double groove for HERMANN, VAILLANT and SAUNIER DUVAL and threaded drain outlet 1/2´M 3bar

E.042

Safety group with 4 functions for boilers d. 3/4´M. - 3/4´F.

Composed of : 1 safety valve set at 7 bar, 1 stop valve, 1 check valve, 1 drain cock.

E.240

Safety valve with brass body and Ø 20 quick coupling plastic cap for RADIANT - BAXI boilers and other brands. With threaded drain outlet 1/2” F. - 3 bar.

Ontladingsdruk: 3 bar.

E.043

Safety valve with built-in check valve ´KRATOS´ for boilers or heaters.

Connections 1/2´M.F. - Intervention pressure 8 bar. In nickle-plated brass.

E.247

Safety valve with milled inlet to allow band insertion and female discharge 3/4´

E.248

Safety valve with rapid conn. and o-ring diam 19.5 with inlet and exhaust flanged female thread ½”

Ontladingsdruk: 3 bar. Voor ketels Immergas

E.242

Safety valve with rapid connection diam. 20 mm with O-ring. Discharge conn. 1/2´M. Discharge pressure 3 bar.

E.244

Safety valve with rapid connection diam. 20 mm with O-ring. Discharge conn. 1/2´M. Discharge pressure 3 bar.

E.028

Spare head for diaphragm safety valve.

Ideal as a spare part for Ferroli wall boilers and other makes.

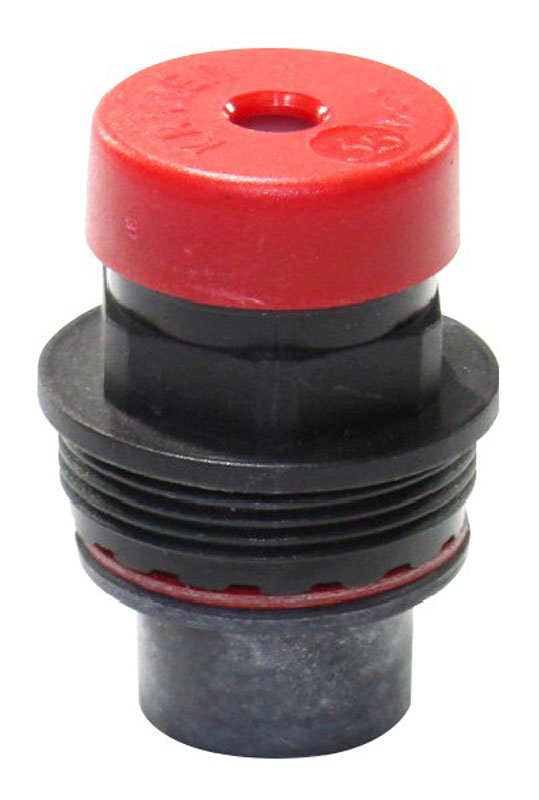

E.029

Spare head for safety valves and hydraulic modules without manual opening.
