Max temp. 180°C.

Max temp. 180°C

Max temp. 250°C.

The thermostat SOLAR CONTROL is an electronic device built after many years of experience in the thermal control field by ANTARES. This device allows you to keep a precise control of the temperature deriving from the solar panels and to distribute the hot water into the tank. Through the sensors it will detect the temperature of the water supplied to the tank and it will compare it with the fluids in the solar panel. When the temperature of the panels is higher than the one from the tank, the differential thermostat starts the pump which allows the exchange of heat between panel and tank. To ensure a perfect exchange of temperature the device has a temperature differential “delta T” variable from 1 to 9 °C which is controlled by the handle on the front part of the thermostat. Temperature control : 30-80 °C. Adjustable range : 1-9°C Relay Outlet 10A 230V. Installation DIN bar (3 modules). Dimensions 53x90x58. Probes connected up to 100 mts. Complete with 2 switch-offs: pump for solar panels and pump for circuit integration.

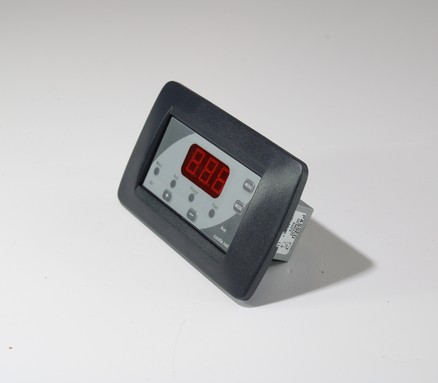

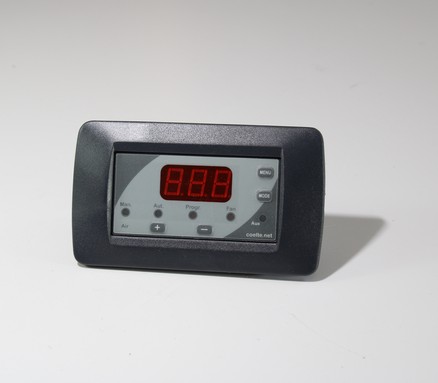

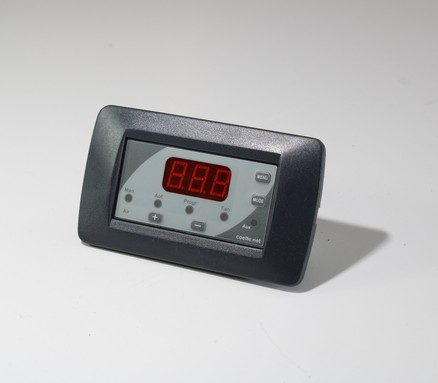

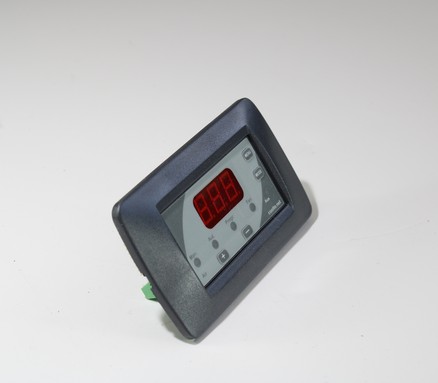

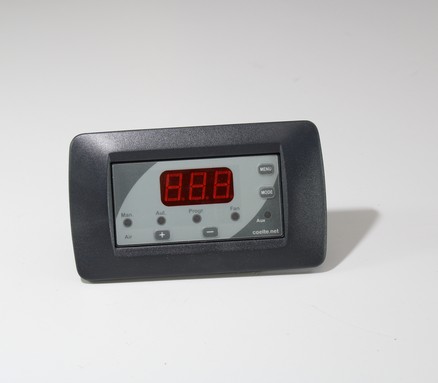

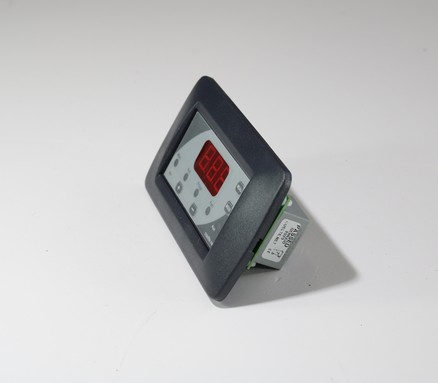

When the temperature of the panels is higher than that of the water in the boiler, the control unit starts the pump that allows the exchange of heat between the panel and the boiler. To ensure perfect temperature exchange, the appliance is equipped with a ´Delta T´ temperature differential variable from 3 ° to 15 ° C which can be adjusted with the buttons on the front of the control unit. It allows the integration of both sanitary water and the traditional heating system. Configuration of the four different solar systems: 1st boiler panel system. 2nd boiler panel system + storage boiler with automatic temperature control. 3rd Heating system integration system with automatic control. 4th Integration system to the swimming pool system with automatic control. Domestic hot water priority. Power supply 230V - Temperature reading range: -20 ° C - 120 ° C. Fixing: on electrical panel on DIN omega bar - 9 modules.
