Antares BIOMASS

Tangential fan for high temperatures, diameter of impellor 80 mm. Power 230 V 50 Hz.

SEE NEW CODE ART. N.604.30

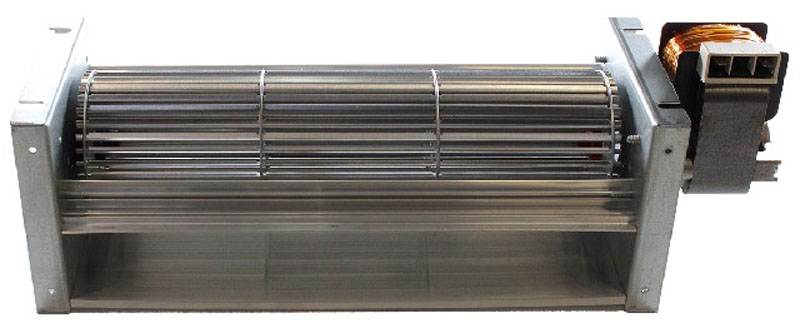

Tangential fan for high temperatures diameter of impellor 60mm - Power 230V 50Hz

Mouth-piece diam :420 x 42mm - Length of fan: 420 mm - Power 25W - Blade-pack. 20mm - Position of motor right - isolation class. F. Ref. manufacturer; TGA 6013 -420/20.

N.642

Centrifugal fan ´Fergas - Emmevi´ type CF 100 - 35 with potential of m3 220/h with flange - Feed 230 V - 50 Hz - Power 80 W - Measuraments: 180 x 161 x 167.

N.644

Centrifugal fan ´Fandis´ type 2GDS15 - 120 x 126 L with potential of m3 390/h without flange - Feed 230 V - 50 Hz - Power 85 W - Measuraments: 160 x 160 x 146.

Compatible : NORDICA - EDIKAMIN - CADEL -SICALOR - PALAZZETTI - MCZ - COLA - EVACALOR - RAVELLI - Modello: D2E120 of EBM.

N.646

Centrifugal fan dual section Fergas type CFD-DA with potential of m3 440/h without flange - Feed 230 V - 50 Hz - Power 130 W - Measuraments: 310 x 137 - Motor shaft with ball bearings.

Compatible: IRIS - RAVELLI - EDILKAMIN - PRISMA - SICALOR - ECOFOREST.

N.664

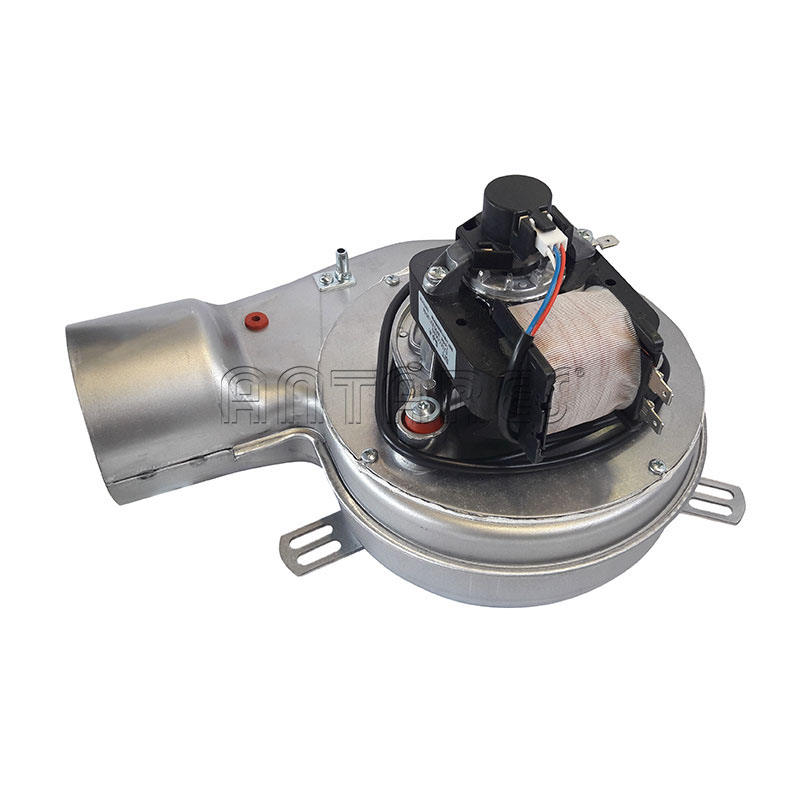

Nataliini flue L2 Natalini/Sit type PI 21 CE0370 with motor in screened poles complete of shell. Power 230 VAC - 50 Hz 50 W with incorporated ingoing flange diam. 80 mm. Complete of mouth-piece and sensor hall (Encoder).

Compatible: NORDICA - MCZ - AMG.

N.665

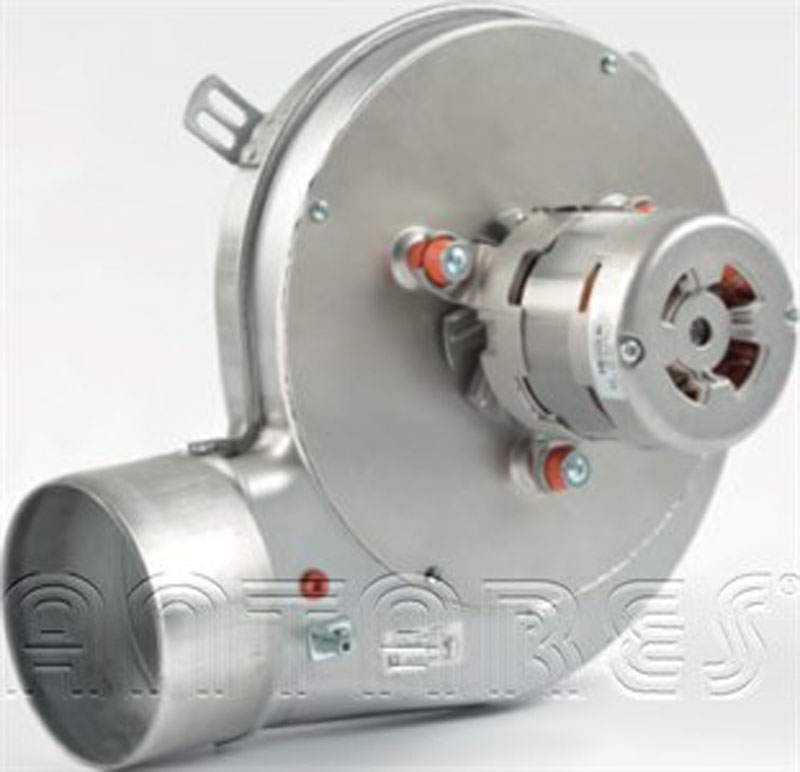

Natalini flue L2 Natalini/Sit type PL 30 CE0050 with condenser motor, complete of shell. Diam. 180 mm - Power 230 VAC - 50 Hz 70 W Diam. mouth-piece outlet: 100 mm. Complete of sensor Halll (Encoder).

Compatible: MONTEGRAPPA - ADLER.

N.666

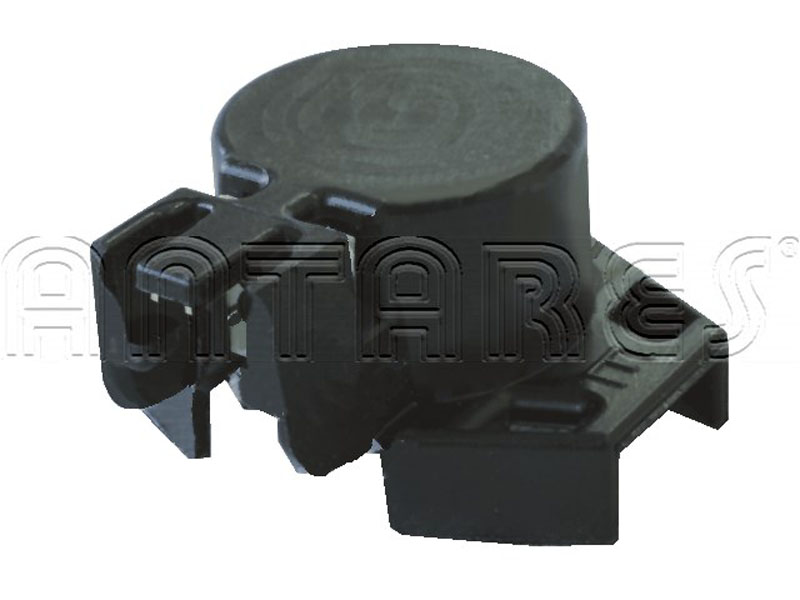

Encoder (Sensor Hall) with support and universal record card for all models PL 21 of LN 2 Nattalini/Sit.

N.667

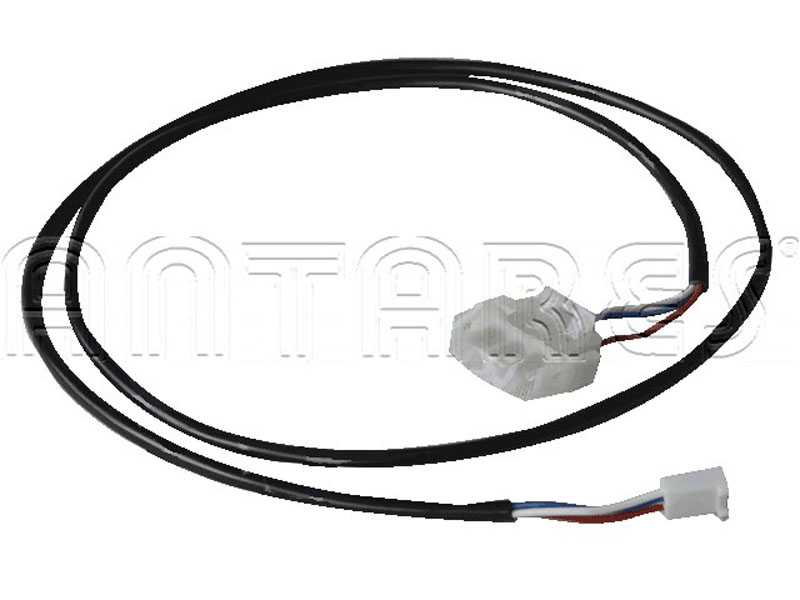

Kit three-phase with Encoder (Sensor Hall) NL 2 Natalini/Sit with lenght 1.000.

R.069

Verpakking van 4 asbestvrije isolatiepanelen (1 m x 0.5 m) voor een totaal van 2 m2 - Dikte: 5 mm.

Om op maat gemaakte warmteisolatiepanelen voor boilers te produceren en voor de verbinding tussen boiler en brander.

N.640

Centrifugal fan ´Fergas - Emmevi´ type CFA-DA 80 x 83 - 25 with potential of m2 195/h without flange - Feed 230 V - 50 Hz - Power 58 W - Measuraments: 132 x 136 x 108.

Compatible: NORDICA - CADEL - PALAZZETTI - SICALOR - EDILKAMIN - MCZ - COLA - MONTEGRAPPA.

N.659

Flue fan L2 Natalini/Sit type PL 21 CE0260 with shaded pole motor complete of shell - current 230 Vac 50 hz 50W - with integrated flange diam 80mm Complete with mouthpiece and sensor Hall (Encoder).

Compatible stoves: NORDICA - MCZ - AMG.
