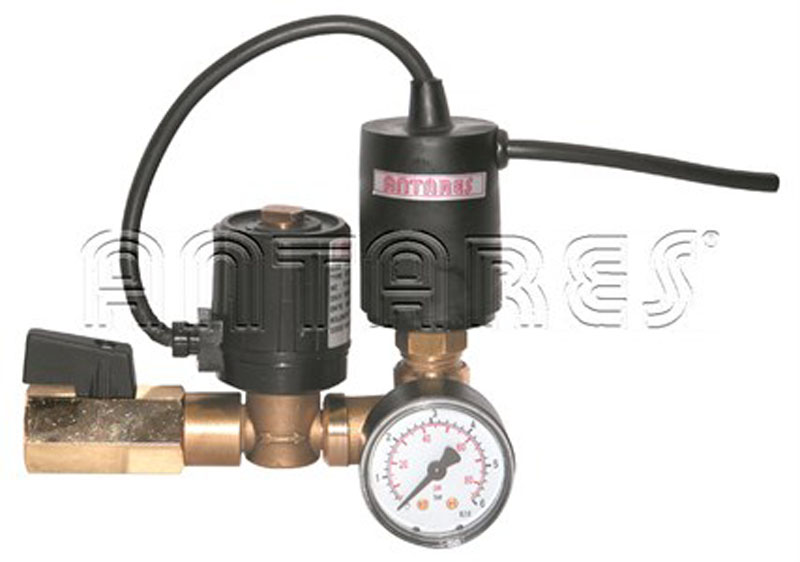

Made of solenoid valve, pressure switch, check valve, close valve and pressure gauge (optional) that guarantees the filling up and holding of water in the system. Tension: 230 VAC - Connections 3/8´F. x 3/8´F. . Micro water loss in boilers can damage the boiler and effect it’s life span. The solution to the problem is the automatic electrical device “Easy Filling”. As a matter of fact the traditional automatic devices work based on pressure resistance of a mechanical spring that introduces water into the system. It is well known that the spring pressure varies according to room temperature. Therefore it is impossible to have a perfect calibration of these devices due to room temperature amplitude. The electrical device “Easy Filling” does not work with springs but simply with a solenoid valve controlled by a pressure switch. In this way constant functioning is guaranteed.

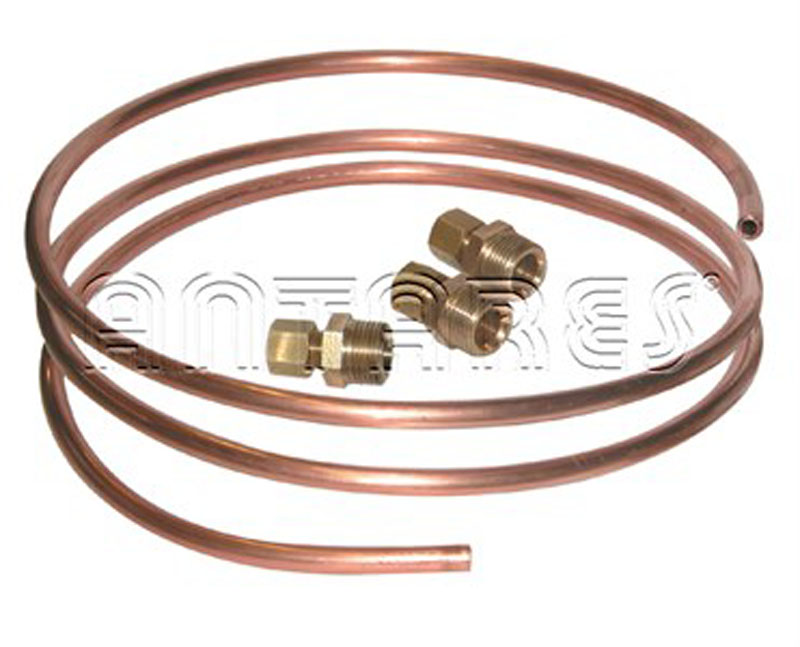

Used to install the unit between the water feeder pipe and the system circuit with 2 quick fitting supports and 1m copper capillary pipe. Suitabel for pipes from 12 to 18 mm diameter.
