Antares Flex hoses

Amalgamating protective tape for the parts of the pipe where the external sheath has been removed in order to allow joint . Regulation forsees that these parts must be covered with yellow protective tape

Width 25mm Thickness 0,5mm Length 5mt.

F.665

Polyvinilic black adhesive tape suitable for small repaires on isolating sheath Of pipes with thermal insulation (Art E.342 and E.343) during installation of solar systems.

Width : 19 mm Thicknes 0,18 mm Length 20 mt

F.668

Adhesive tape in foamed reinforced rubber with black close cells and throaway protection film.

Suitable for the insulation of hot and cold pipes, in particula for the cooling production and distribution systems and for special parts that cannot be insulated with tubular pipe insulators. Thickness 3mm.

F.745

Flaring instrument for corrugated pipe for templates F.746.12 - F.746.15 and F.746.20 for diameters from 1/2´- 3/4´ e 1´.

This device facilitates the forming of flaring without having to fall back on N°3.

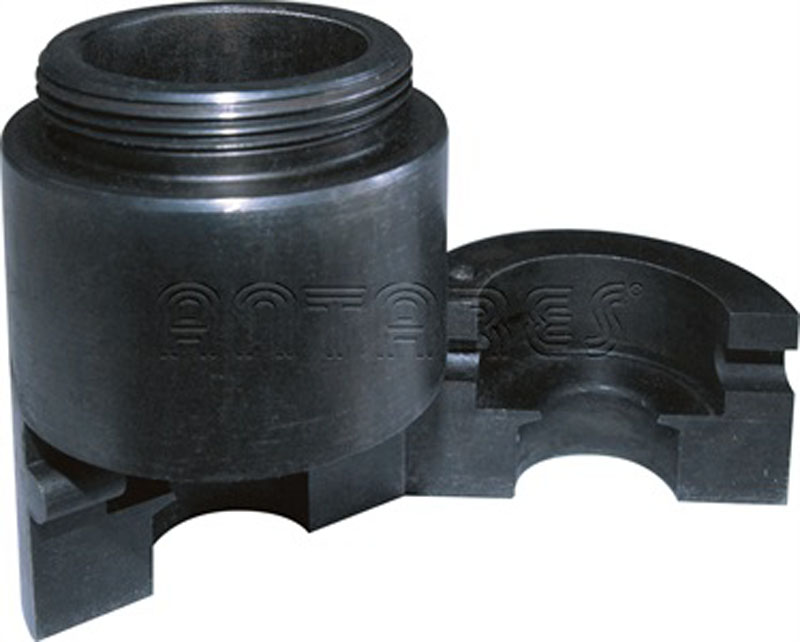

F.746

Templates for inserting inside the flaring instrument F.745.10.

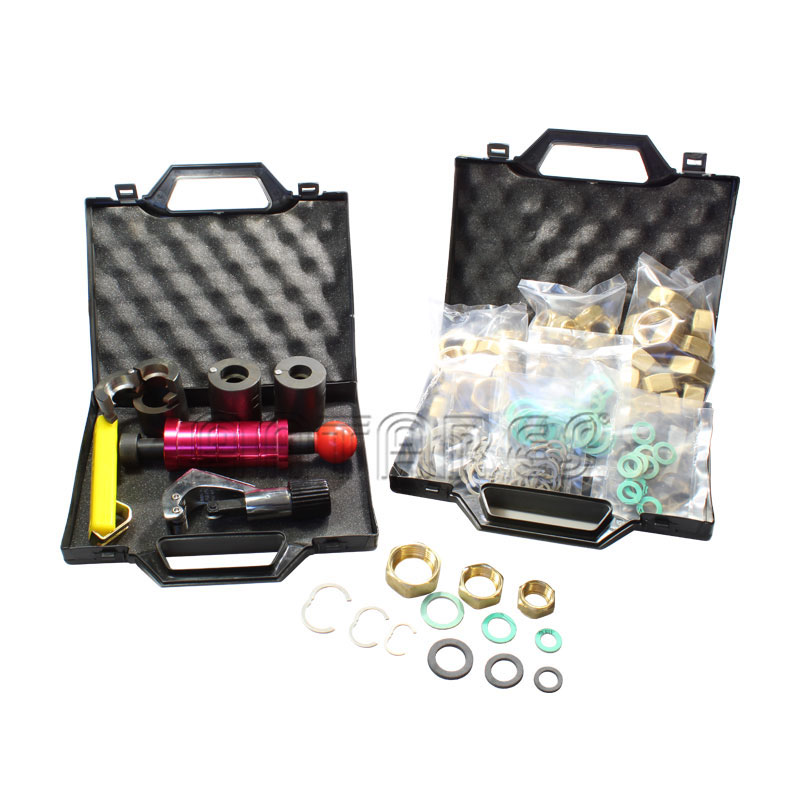

F.748

Suitcase kit for corrugated pipe CSST complete of: Case in ABS - Pipe-cutter F.620.35 - Flaring instrument F.745.10 - Templates for flaring instrument F.746.12 F.746.15 and F.746.20 - n20 nuts 1/2´ - n20 open rings diam.12 with n10 washers Fasit and n10 washer in NBR - n12 nuts 1´ - n12 open rings diam.20 with n6 washers in Fasit and 6 washers in NBR.

Complete with: ABS case - Pipe cutter Art. F.620.28 - Flaring unit Art. F. 745.10, templates for flaring machine Art. F. 746.12 and F. 746.15 and F.746.20 - n ° 20 1/2 ´nuts, n ° 20 open rings Ø 12 with n ° 10 Fasit seals and n ° 10 NBR seals, n ° 20 3/4 ´nuts - n ° 20 open rings Ø 15, with n ° 10 Fasit seals and n ° 10 NBR seals , n ° 12 1 ´nuts, n ° 12 open rings Ø 20 with n ° 6 gaskets in Fasit and n. ° 6 gaskets in NBR.

G.147
