Manometer with crystal liquid display for professional use, portable reduced size: 67 x 135 x 35 mm. for measuring static and differential pressure especially indicated for: - Gas Pressure - Pressure Loss in Piping - Pressure in Combustion Chambers - Differential Pressure - Chimney Flue Efficiency Capable of scale measures: ± 200 mm. H20 / ± 1.000 mm. H20 Battery feed 1 x 9V. Rechargable with cable. Battery life 100h with auto switch-off. Equipped with two silicone tubes (4 x 9 x 900 mm. - 7 x 12 x 150 mm.) to metallic one (4 x 6 x 160 mm.). 100 mbar.

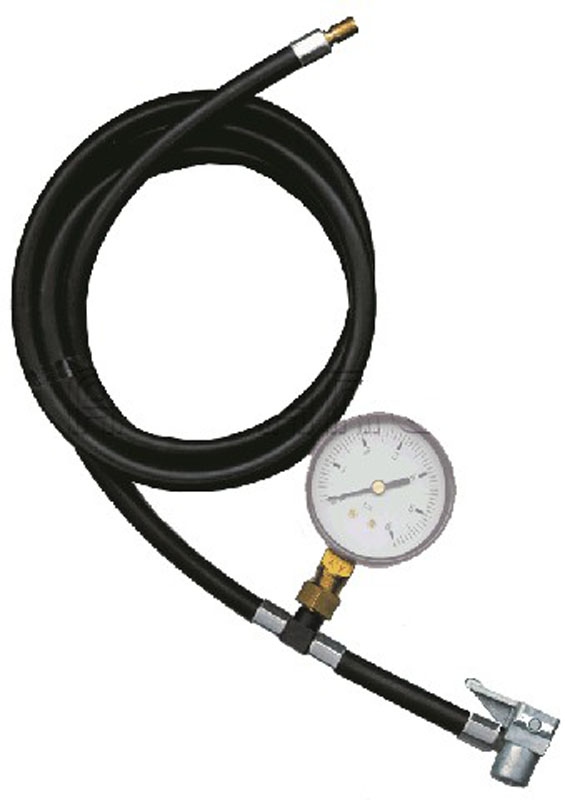

Totale lengte: 1800 mm, onderverdeeld als volgt: snelkoppeling + 80 mm, manometeraansluiting + 1700 mm, + M. koppeling. Max. druk 18 bar.

Eenvoudig te hanteren met wijzerplaat diameter 50. Compleet met handvatkoppeling voor snelle opmetingen en bevestigd aan 1/4´M.

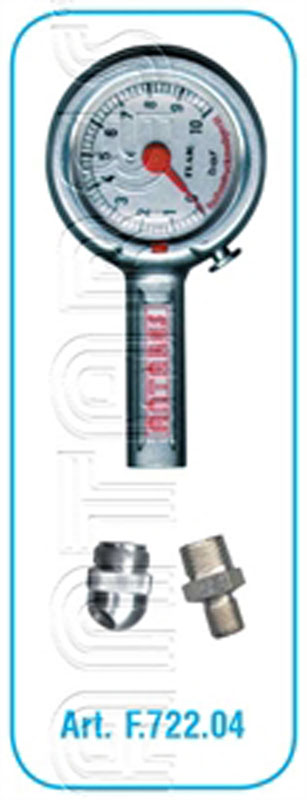

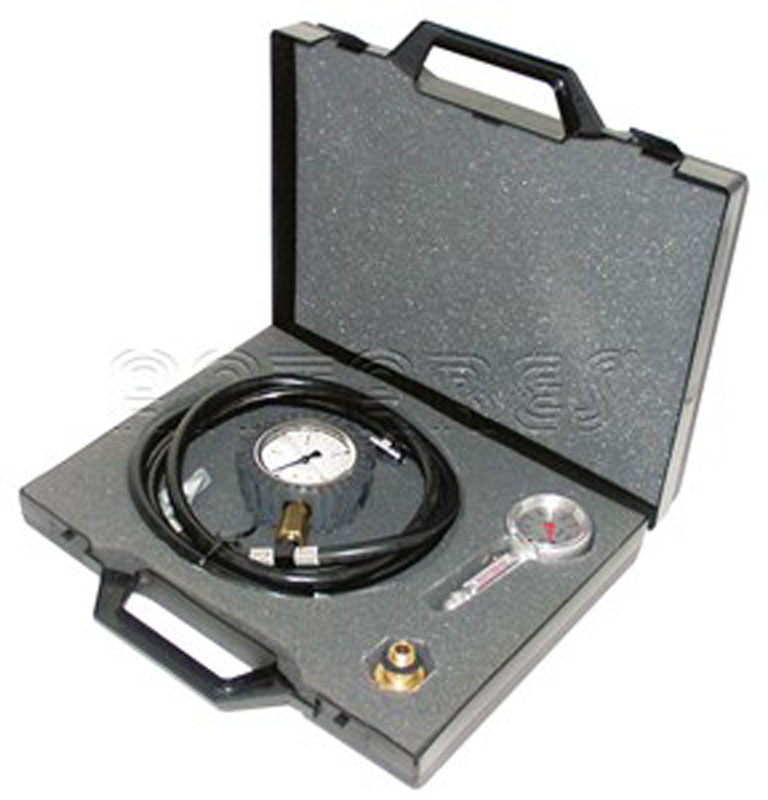

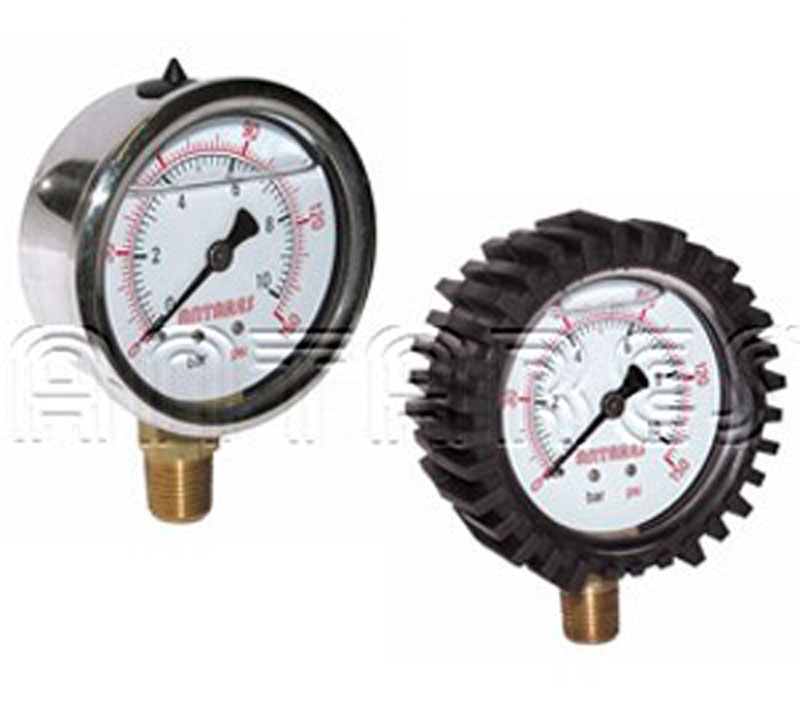

Bevat:- -Art. F.720.10: Rubber verlengslang. -Art. D.003.60: Radiale manometer in glycerine met beschermingsomhulsel. Schaal 0÷4 bar. -Art. F.722.04: Controlemanometer, eenvoudig in gebruik met blokkering van de drukaflezing. -Aansluiting naar kraan met 3/4-V. koppeling.

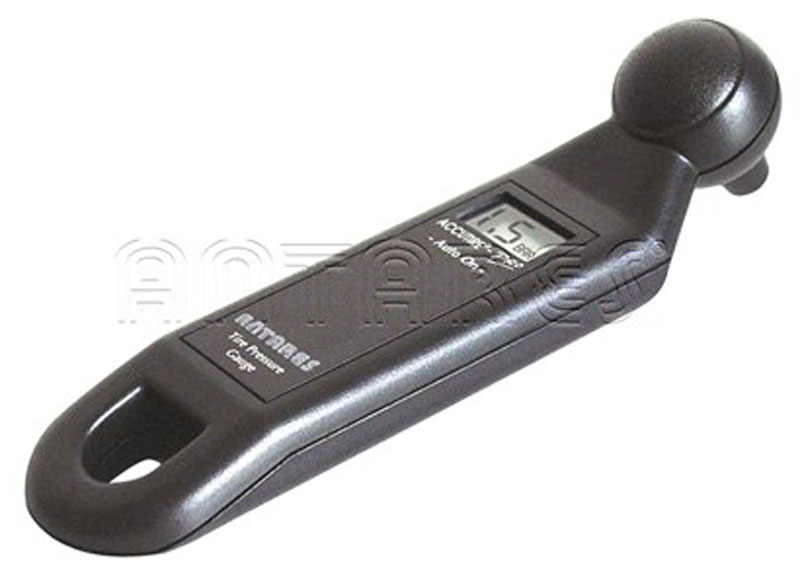

Schaal: 0-10 bar - Resolutie: 0,05 bar - Voeding: Permanente Lithium batterij - Automatische ON/OFF - Biepsignaal voor het bevestigen van de drukaflezing.

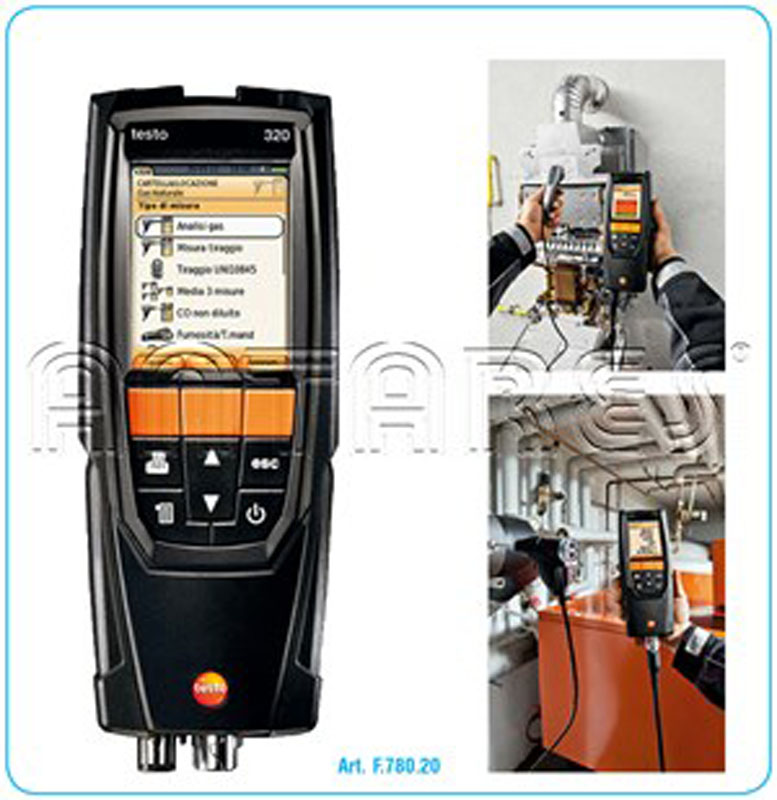

The flue gas analyzer is the ideal tool for the regulation and certification of thermal systems. The free app. sends data to the Smartphone, generates reports and e-mails them to the customer. 3 YEAR WARRANTY without maintenance contract for the item ad cells for the measurement of 02 and CO, external probe for fine draft UNI 10845 + kit probe draft, high-resolution color graphical display and flue gas matrix function. Kit is composed of: Flue gas analyzer TESTO 320-1 with sensor O2 and CO 4000ppm; Bluetooth; Compact gas sampling probe length 180 mm and Ø 6 mm; Infrared printer with 6 paper rolls; External probe draught UNI 10845; Rigid and compact case; Power supply; Calibration certificate; Instruction manual.
