Coil of 50 m polyethylene capillary hose for watering systems. External Ø 6 mm - Internal Ø 4 mm - Thickness 1 mm.

Metallic flexible hose for connection to domestic gas appliances ´EUCOOKERHOSE´. In accordance with the new european regulation EN 14800.

Made up of steel spirals with metallic net sheath and another protective plast sheath DN12. Complete with washers for gas.

B.124

Veiligheidsslang voor alle types gas met interne en externe staalbedekking met verbindingsplug DIN3383 voor de aansluiting op alle veiligheidskleppen of doppen.

Safety tube for all types of gas. Internal and external in steel with connecting cap DIN 3383 for connection to all types of safety valves or taps. Connection 1/2´ F.

D.040

Anti-vibrerende flexibele slang. Koppelingen: M. x V. wartelmoer in platte zitting. Max. Temp.: 85°/90°C. Druk 6 bar.

D.042

Anti-vibrerende flexibele slang. Koppelingen: M. met gebogen uiteinde met V. wartelmoer in platte zitting. Max. Temp.: 95°C. Druk 6 bar.

E.325

´INOFLEX´ Flexibele slang, parallel omvlochten, in getemperd roestvrijstaal met M. V. messing koppelingen voor gas & water. Kan op maat gesneden worden.

Max. druk: 6 bar - Max. temperatuur: van -20°C / +110°C

E.326

Module bestaande uit 2 flexibele slangen in Inox roestvrijstaal, DN 32, lengte 1000 mm. Kan op maat gesneden worden voor verbinding tussen boiler en verdeelleiding. 1 1/2´ M. wartelmoer x 1 1/4´ M. wartelmoer. Druk max 6 bar.

Max working pressure: 15 bar. Max temp. from -40°C to +150°C

E.327

Elastic compensation joint in threaded neoprene with 3-piece fitting F.F. in zinc-plated cast iron.

Certified for installation on drinkable water systems. Max temp 10-105C° Absorption capacity 22 mm compression 6 mm .Possible displacement 22 mm.

E.329

Elastic compensation joints in flanged neoprene PN16 in galvanised steel.

Certified for installation on drinkable water systems. Max temp. 10-105C°.

E.330

Uitrekbare flexibele slang volledig in roestvrijstaal.

Maximum druk: 10 bar - Werktemperatuur: -20°C tot +110°C.

E.333

Uitrekbare flexibele slang in roestvrijstaal voor gas voor huisgebruik comform volgens de UNI CIG 9891 reglementering met externe bekleding in geel polyethyleen.

E.334

Anti vibration dilation joint in stainless steel for gas distribution piping and other uses. MM thread.

E.335

Roestvrijstalen Inox PN 12 expansiesok met binnenschuifmof.

Aansluitingen: las-afsluitsok. Absorptievermogen: 25 mm (10 mm tractie, 15 mm compressie).

E.336

Anti-vibrerend expansieverloopstuk voor aanvoerleidingen voor gasbranders met Inox roestvrijstalen middelpunt onderaan & losse flenzen in PN 16 UNI2223 staal. Kan eveneens gebruikt worden als expansiesok.

E.338

Kit of flexible hoses in stainless steel for connection to boilers.

made of: 2 Flex which can be shortened 3/4´ F. - 3/4´ F (E.332) for forward and return 2 Flex which can be shortened 1/2´ F. - 1/2´ F. (E.332) for hot/cold sanitary water 1 Flex extenible for gas 3/4´ M. - 3/4´ F. (E.333) with yellow sheath 5 washer 3/4´ 4 washers 1/2´

E.340

Rol flexibele slang in getemperd roestvrijstaal, parallel omvlochten. Kan op maat gesneden worden E.346 - E.348 - G.147 - G.149 - G.167 - G.158. Werktemperatuur: -20°C tot +550°C.

Thickness 0.3 mm. Max temp 550°C max pressure 15 bar.

E.341

Coil of corrugated flexible pipe CSST (Corrugated stainless steel tubing) in stainless steel AISI 316 ´INOFLEX´ parallel spiral coils with protective yellow sheath (MDPE) suitable for gas systems, conforming with leg. EN15266. Can connect with the fittings below.

Thickness 0.3 mm Max temp. 100°C max pressure 0.5 bar.

E.342

Coil of flexible tube ´INOFLEX CSST´ for solar systems. In stainless steel AISI 304 corrugated parallel spires thickness 0,3mm in defined length with isolating expanding sheath EPDM 13mm and coated with protective film against UV rays and from ware and tare with or without multiphase cable for temp. probes.

Max temp: - 40 + 150°C - presure PN 15bar.

E.345

Double coil (to and from) of flexible tube ´INOFLEX CSST´ for solar systems in stainless steel AISI 304 corrugated parallel spires thickness 0.3 mm in defined lenght with isolating expanding sheath EPDM 8 mm and coated with protective film iron UV rays and from ware and tare with multifase cable (for temp. probes).

Max temp. 40 + 150°C pressure PN 15 bar.

E.346

Pack of brass nuts for the washers with corrugated tube CSST.

With the half ring and the fittings with male thread with flat seat allows you to form a joint.

E.348

Pack of open rings (2) with washers (3) for fastening fitting joints assemblies with corrugated pipe CSST.

Thickness washers 1.8 mmm. Note: when buying bear in mind the use, european legislation foresees the obligation to use gas washers in NBR EN682.

E.349

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.350

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.360

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.363

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.365

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.797

Exhaust silencer in PVC diam. 50 mm

E.798

Air expulsion grid in PVC diam 50 mm.

E.800

Rod in PVC 2 mt diam 50 mm.

E.801

Coupling in PVC diam 50 mm.

E.803

Elbow 45° in PVC diam 50 mm.

E.805

Deviation joint 45° in PVC diam 50 mm F x F x F.

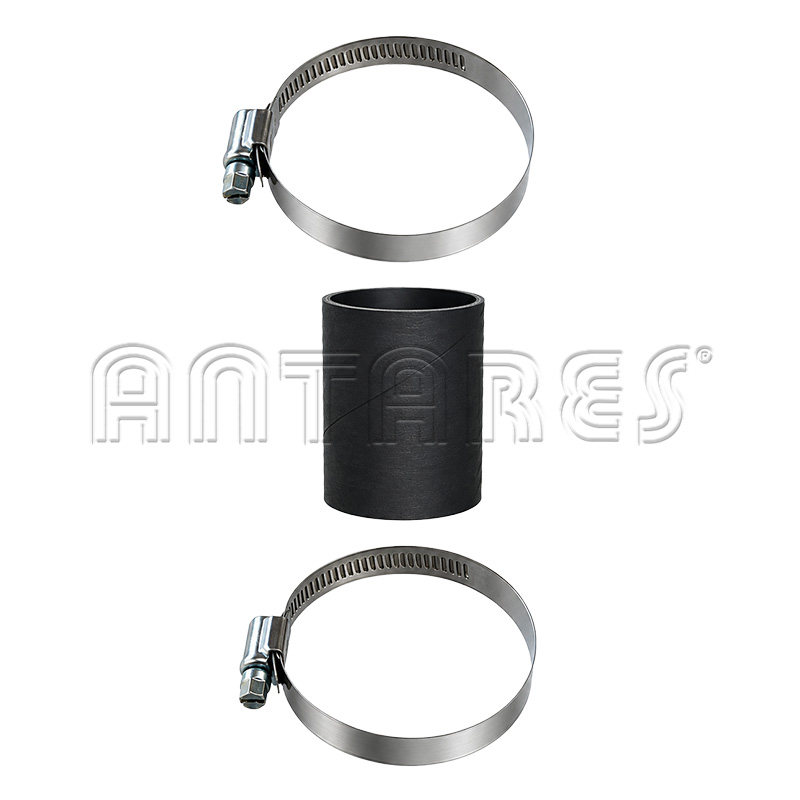

E.807

Couple of clips radius 50x56 mm complete with 4 steel fixing collars.

E.808

Antistatic transparent felxible tube diam 50 mm suitable for connecting fixed pipework to the extracor. (Art. E.780.15)

E.810

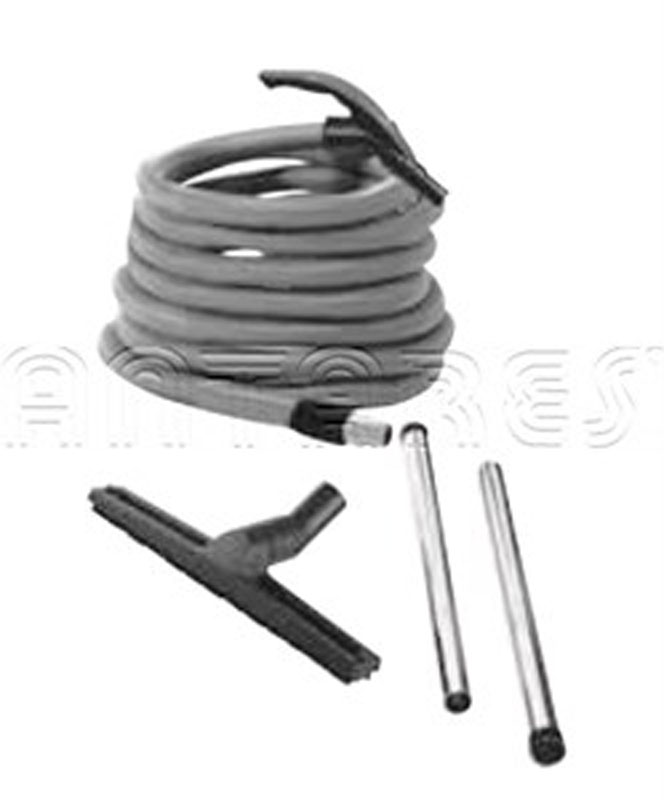

Accesory kit for the removal of ashes and cleaning of boiler area made up of flexible tube 7mt diam 32, fitting with metal ring for flex., couple chromed tubes and floor brush.

F.305

Oval collars for twin pipes with sheath for solar systems or other steel applications. In galvanized steel.

F.390

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.392

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.394

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.620

Pipe cutter for diameters 3 to 35 mm.

F.625

Pipe cutter for multilayer and polythene pipe for diameters up to 35mm.

F.664

Amalgamating protective tape for the parts of the pipe where the external sheath has been removed in order to allow joint . Regulation forsees that these parts must be covered with yellow protective tape

Width 25mm Thickness 0,5mm Length 5mt.

F.665

Polyvinilic black adhesive tape suitable for small repaires on isolating sheath Of pipes with thermal insulation (Art E.342 and E.343) during installation of solar systems.

Width : 19 mm Thicknes 0,18 mm Length 20 mt

F.668

Adhesive tape in foamed reinforced rubber with black close cells and throaway protection film.

Suitable for the insulation of hot and cold pipes, in particula for the cooling production and distribution systems and for special parts that cannot be insulated with tubular pipe insulators. Thickness 3mm.

F.745

Flaring instrument for corrugated pipe for templates F.746.12 - F.746.15 and F.746.20 for diameters from 1/2´- 3/4´ e 1´.

This device facilitates the forming of flaring without having to fall back on N°3.

F.746

Templates for inserting inside the flaring instrument F.745.10.

F.748

Suitcase kit for corrugated pipe CSST complete of: Case in ABS - Pipe-cutter F.620.35 - Flaring instrument F.745.10 - Templates for flaring instrument F.746.12 F.746.15 and F.746.20 - n20 nuts 1/2´ - n20 open rings diam.12 with n10 washers Fasit and n10 washer in NBR - n12 nuts 1´ - n12 open rings diam.20 with n6 washers in Fasit and 6 washers in NBR.

Complete with: ABS case - Pipe cutter Art. F.620.28 - Flaring unit Art. F. 745.10, templates for flaring machine Art. F. 746.12 and F. 746.15 and F.746.20 - n ° 20 1/2 ´nuts, n ° 20 open rings Ø 12 with n ° 10 Fasit seals and n ° 10 NBR seals, n ° 20 3/4 ´nuts - n ° 20 open rings Ø 15, with n ° 10 Fasit seals and n ° 10 NBR seals , n ° 12 1 ´nuts, n ° 12 open rings Ø 20 with n ° 6 gaskets in Fasit and n. ° 6 gaskets in NBR.

G.147

M. M. Nippels in messing
