Antares Pipes

Coil of 50 m polyethylene capillary hose for watering systems. External Ø 6 mm - Internal Ø 4 mm - Thickness 1 mm.

Metallic flexible hose for connection to domestic gas appliances ´EUCOOKERHOSE´. In accordance with the new european regulation EN 14800.

Made up of steel spirals with metallic net sheath and another protective plast sheath DN12. Complete with washers for gas.

B.124

Veiligheidsslang voor alle types gas met interne en externe staalbedekking met verbindingsplug DIN3383 voor de aansluiting op alle veiligheidskleppen of doppen.

Safety tube for all types of gas. Internal and external in steel with connecting cap DIN 3383 for connection to all types of safety valves or taps. Connection 1/2´ F.

D.040

Anti-vibrerende flexibele slang. Koppelingen: M. x V. wartelmoer in platte zitting. Max. Temp.: 85°/90°C. Druk 6 bar.

D.042

Anti-vibrerende flexibele slang. Koppelingen: M. met gebogen uiteinde met V. wartelmoer in platte zitting. Max. Temp.: 95°C. Druk 6 bar.

E.325

´INOFLEX´ Flexibele slang, parallel omvlochten, in getemperd roestvrijstaal met M. V. messing koppelingen voor gas & water. Kan op maat gesneden worden.

Max. druk: 6 bar - Max. temperatuur: van -20°C / +110°C

E.326

Module bestaande uit 2 flexibele slangen in Inox roestvrijstaal, DN 32, lengte 1000 mm. Kan op maat gesneden worden voor verbinding tussen boiler en verdeelleiding. 1 1/2´ M. wartelmoer x 1 1/4´ M. wartelmoer. Druk max 6 bar.

Max working pressure: 15 bar. Max temp. from -40°C to +150°C

E.327

Elastic compensation joint in threaded neoprene with 3-piece fitting F.F. in zinc-plated cast iron.

Certified for installation on drinkable water systems. Max temp 10-105C° Absorption capacity 22 mm compression 6 mm .Possible displacement 22 mm.

E.329

Elastic compensation joints in flanged neoprene PN16 in galvanised steel.

Certified for installation on drinkable water systems. Max temp. 10-105C°.

E.330

Uitrekbare flexibele slang volledig in roestvrijstaal.

Maximum druk: 10 bar - Werktemperatuur: -20°C tot +110°C.

E.333

Uitrekbare flexibele slang in roestvrijstaal voor gas voor huisgebruik comform volgens de UNI CIG 9891 reglementering met externe bekleding in geel polyethyleen.

E.334

Anti vibration dilation joint in stainless steel for gas distribution piping and other uses. MM thread.

E.335

Roestvrijstalen Inox PN 12 expansiesok met binnenschuifmof.

Aansluitingen: las-afsluitsok. Absorptievermogen: 25 mm (10 mm tractie, 15 mm compressie).

E.336

Anti-vibrerend expansieverloopstuk voor aanvoerleidingen voor gasbranders met Inox roestvrijstalen middelpunt onderaan & losse flenzen in PN 16 UNI2223 staal. Kan eveneens gebruikt worden als expansiesok.

E.338

Kit of flexible hoses in stainless steel for connection to boilers.

made of: 2 Flex which can be shortened 3/4´ F. - 3/4´ F (E.332) for forward and return 2 Flex which can be shortened 1/2´ F. - 1/2´ F. (E.332) for hot/cold sanitary water 1 Flex extenible for gas 3/4´ M. - 3/4´ F. (E.333) with yellow sheath 5 washer 3/4´ 4 washers 1/2´

E.340

Rol flexibele slang in getemperd roestvrijstaal, parallel omvlochten. Kan op maat gesneden worden E.346 - E.348 - G.147 - G.149 - G.167 - G.158. Werktemperatuur: -20°C tot +550°C.

Thickness 0.3 mm. Max temp 550°C max pressure 15 bar.

E.341

Coil of corrugated flexible pipe CSST (Corrugated stainless steel tubing) in stainless steel AISI 316 ´INOFLEX´ parallel spiral coils with protective yellow sheath (MDPE) suitable for gas systems, conforming with leg. EN15266. Can connect with the fittings below.

Thickness 0.3 mm Max temp. 100°C max pressure 0.5 bar.

E.342

Coil of flexible tube ´INOFLEX CSST´ for solar systems. In stainless steel AISI 304 corrugated parallel spires thickness 0,3mm in defined length with isolating expanding sheath EPDM 13mm and coated with protective film against UV rays and from ware and tare with or without multiphase cable for temp. probes.

Max temp: - 40 + 150°C - presure PN 15bar.

E.345

Double coil (to and from) of flexible tube ´INOFLEX CSST´ for solar systems in stainless steel AISI 304 corrugated parallel spires thickness 0.3 mm in defined lenght with isolating expanding sheath EPDM 8 mm and coated with protective film iron UV rays and from ware and tare with multifase cable (for temp. probes).

Max temp. 40 + 150°C pressure PN 15 bar.

E.346

Pack of brass nuts for the washers with corrugated tube CSST.

With the half ring and the fittings with male thread with flat seat allows you to form a joint.

E.348

Pack of open rings (2) with washers (3) for fastening fitting joints assemblies with corrugated pipe CSST.

Thickness washers 1.8 mmm. Note: when buying bear in mind the use, european legislation foresees the obligation to use gas washers in NBR EN682.

E.349

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.350

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.360

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.363

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.365

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

E.797

Exhaust silencer in PVC diam. 50 mm

E.798

Air expulsion grid in PVC diam 50 mm.

E.800

Rod in PVC 2 mt diam 50 mm.

E.801

Coupling in PVC diam 50 mm.

E.803

Elbow 45° in PVC diam 50 mm.

E.805

Deviation joint 45° in PVC diam 50 mm F x F x F.

E.807

Couple of clips radius 50x56 mm complete with 4 steel fixing collars.

E.808

Antistatic transparent felxible tube diam 50 mm suitable for connecting fixed pipework to the extracor. (Art. E.780.15)

E.810

Accesory kit for the removal of ashes and cleaning of boiler area made up of flexible tube 7mt diam 32, fitting with metal ring for flex., couple chromed tubes and floor brush.

F.305

Oval collars for twin pipes with sheath for solar systems or other steel applications. In galvanized steel.

F.390

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.392

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.394

Suction valve for “Multiflex” tank with pull lever and foot valve. In brass with 1 ”M connection

Aanzuig- en retourkoppelingen: diameter 8, 10, 13 of 3/8´. Lengte aanzuigslang: 2.200 mm. Met diameter 6 koppeling, klaar voor aanhechting van niveaumeter A.040.00.

F.620

Pipe cutter for diameters 3 to 35 mm.

F.625

Pipe cutter for multilayer and polythene pipe for diameters up to 35mm.

F.664

Amalgamating protective tape for the parts of the pipe where the external sheath has been removed in order to allow joint . Regulation forsees that these parts must be covered with yellow protective tape

Width 25mm Thickness 0,5mm Length 5mt.

F.665

Polyvinilic black adhesive tape suitable for small repaires on isolating sheath Of pipes with thermal insulation (Art E.342 and E.343) during installation of solar systems.

Width : 19 mm Thicknes 0,18 mm Length 20 mt

F.668

Adhesive tape in foamed reinforced rubber with black close cells and throaway protection film.

Suitable for the insulation of hot and cold pipes, in particula for the cooling production and distribution systems and for special parts that cannot be insulated with tubular pipe insulators. Thickness 3mm.

F.745

Flaring instrument for corrugated pipe for templates F.746.12 - F.746.15 and F.746.20 for diameters from 1/2´- 3/4´ e 1´.

This device facilitates the forming of flaring without having to fall back on N°3.

F.746

Templates for inserting inside the flaring instrument F.745.10.

F.748

Suitcase kit for corrugated pipe CSST complete of: Case in ABS - Pipe-cutter F.620.35 - Flaring instrument F.745.10 - Templates for flaring instrument F.746.12 F.746.15 and F.746.20 - n20 nuts 1/2´ - n20 open rings diam.12 with n10 washers Fasit and n10 washer in NBR - n12 nuts 1´ - n12 open rings diam.20 with n6 washers in Fasit and 6 washers in NBR.

Complete with: ABS case - Pipe cutter Art. F.620.28 - Flaring unit Art. F. 745.10, templates for flaring machine Art. F. 746.12 and F. 746.15 and F.746.20 - n ° 20 1/2 ´nuts, n ° 20 open rings Ø 12 with n ° 10 Fasit seals and n ° 10 NBR seals, n ° 20 3/4 ´nuts - n ° 20 open rings Ø 15, with n ° 10 Fasit seals and n ° 10 NBR seals , n ° 12 1 ´nuts, n ° 12 open rings Ø 20 with n ° 6 gaskets in Fasit and n. ° 6 gaskets in NBR.

G.147

M. M. Nippels in messing

G.160

3m brass tube that can be cut and threaded according to one´s need.

G.167

Straight brass fitting between the copper tube and the corrugated steel tube.

G.700

Coil buis-in-plyethyleenbuis zonder beschermende bus. Zuurstofverspreidende barrière-afsluiting - Model PEX.

Neutrale kleur. Voor vloerverwarming, warm en koud water distributiesystemen. Druk: 6 bar. Temperatuur: 95°C. (10 bar en 70°C). DVGW geïnspecteerd en goedgekeurd.

G.704

Coil van 100 m buis-in-polyethyleenbuis - Model PEX.

Neutrale kleur. Voor warm en koud water distributiesystemen, vloerverwarming en radiatorinstallaties. Druk: 10 bar. Temperatuur: 95°C. DVGW geïnspecteerd en goedgekeurd.

G.705

Coil van 50 m buis-in-polyethyleenbuis - Model PEX. Met verwijderbare beschermende bekleding.

Voor warm- en koud water distributiesystemen, vloerverwarming & radiatorinstallaties. Druk: 10 bar. Temperatuur: 95°C. DVGW geïnspecteerd en goedgekeurd.

G.734

Verstelbare steunplaat voor de installatie van de koppelingen G.730 & G.745.

G.737

Geleidingsbocht 90° voor polyethyleenbuizen diam. 14 - 16.

G.760

Geleidingsboog voor polyethyleenbuis.

G.800

Quantities as indicated below of insulation heating panels for underfloor heating systems ´CLASSIC FLOOR´ in polystyrene with anti-steam film in polyethylene 0.15mm and depth of trail for pipe 16/17 Borders male /female for fitted layout.

Afmetingen (mm): 1350 x 750 x 45 ( 15 + 30).

G.802

Rol van 100 m isolatietape voor plinten in expansiepolyethyleen (dikte: 6 mm - breedte: 150 mm). Om aan te brengen tussen vloer en muren, voor het leggen van de vloerverwarming.

Voorkomt warmteverlies en absorbeert vloerexpansie.

G.804

Tank met 10 kg vloeibaarmakende sostantie voor cement.

Indien toegevoegd aan een cementmix, wordt een nog betere bedekking van de verwarmingsbuizen gegarandeerd. Moet verdund worden voor gebruik in de verhouding 1.3 kg voor 100 kg cement.

G.810

Insulation panels for underfloor heating systems ´SISTEMA FLAT´ with flat surface and with anti-steam filmin polyethylene 0.15mm- borders male/female forfitted layout. Quantities as indicated below .

Tech. characteristics: Density: 30 Kg/m3 Conductivity 0,0332W/mK Acoustic absorbtion: 10dB heat resistence: 0,786 m2K/W Load resistence: 150 KPa Fire resistence: Class E

G.815

Pack 600g of synthetic fibre to increase the mecchanical characteristics of the cement and avoid withdrawl.

Dosing: 600 gr. for cubic meter of cement.

G.816

Pack of 5 sheets 1.000x 2.000mm of soldered mesh with 3mm wire for layers of cement Mesh sizes 100x100mm

G.818

Roll of PE polyethylene sheet 100m long and 1,5m in hight when folded is used to place over flat insulation panel (art G.810.20) used as a stern barrier; suitable for radiant systems with soldered mesh or fixing materials.

G.820

Pack of 10 dilation compensators 2m long in foam rubber with adhesive end.

G.822

Pack of 50 pipe guides suitable for the laying down of pipe with distance of 6cm. The holes on the base allow for further fixing to the insulation with the use of special modular clips.

G.824

Pack of 10 supports to be used as spacers for double mesh when laying down cement.

Ensure the lifting of 30mm of the mesh from the bottom and distance between the two wire meshes (60mm) and the pipes.

G.825

Pack of 100 clips for wire mesh for the fixing of pipes up to diam 25mm. Suitable for mesh with wire diam 4/8mm.

G.826

Pack of 200 plastic pipe fixing clips for diameters 14-20 for manual insertion on mesh with wire of diam 3mm.

G.828

Holder with 50 plastic pipe clips for diam 14-17 for automatic insertion on mesh with wire diam 3mm by using appropriate tool ´Tacker´ art G.835.00.

G.830

Pack of 500 wire mesh fixing clips for application to insulation panels 28mm high. Distance between points 75.

G.831

Pack of 500 manual pipe clips.

For manual fixing OF PIPES TO INSULATION PANELS UP TO DIAM 20 and also for fixing of pipe guides art G.822 45mm high. The insulator must have a minimun thickness of 30mm.

G.835

Clip fixer ´Tacker´ tool.

For the automatic insertion of pipe fixing clips. Art G.836.20 and G.828.20.

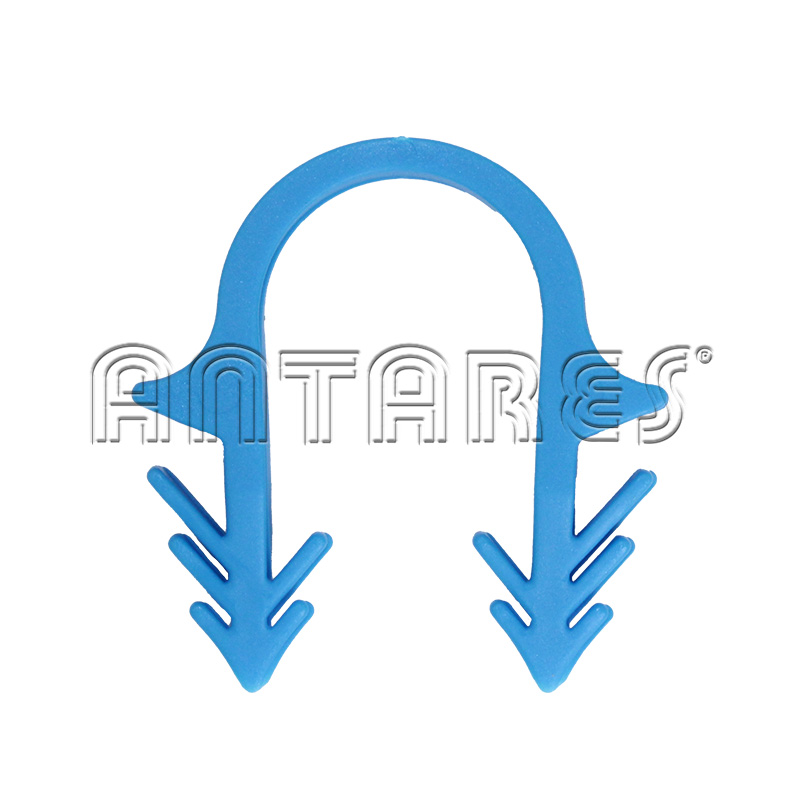

G.836

Pack of 300 pipe fixing clips. 10 strips of 30 pieces.

Suitable for automatic fixing of pipes up to diam 20mm onto insulation panels with special tool ´Tacker´ art G.835.00 and also for fixing of pipe guide art G.822.

G.840

Pipe dispenser.

G.900

Coil PEX-AL meerlaagsbuizen.

Voor warm en koud water distributiesystemen, radiatorinstallaties & vloerverwarming. Druk: 10 bar. Temperatuur: 95°C.

G.902

Coil of PEX_AL multilayer pipe with inflammable blue closed cell protective cover.

For the distribution of hor and cold water, radiator heating systems and underfloor heating. Pressure 10bar. Temperature: 95°C

G.903

Coil of pex -al multilayer pipe with inflammable red closed cell protective sleeve

For the distribution of hot and cold water, radiator heating sytems and underfloor heating. Pressure 10bar temp. 95°c

G.904

Coil of pex-al multilayer pipe with corrugated blue protective cover.

For the distribution of hot and cold water, radiator heating systems and underfloor heating. Pressure 10 bar temp. 95°C

G.905

Coil of PEX - AL multilayer pipe with corrugated red protective cover.

For the distribution of hot and cold water, radiator heating systems and underfloor heating. Pressure 10 bar temp. 95°C

G.917

Straight brass fitting with F swivel nut and press fitting end for multilayer and polythene pipe.

Suitable for connections to manifolds; G.015-G.016-G.019-G.020-G.021-G.022-G.023-G.024-G.025-G.026-G.030-G.031-G.033.

G.930

Spring to bend multilayer pipe.

G.933

Calibration tool for pipes diameter 14, 16, 18, 20, 26, 32.

G.935

Electrical radial presser in metal case with 3 pliers for pipe diam. 16/20/26 + steel case,

Run on electricity. Pliers with TH profile

G.937

Electrical radial pressure battery or electricity powered. In metal case with 3 pliers for pipe diam 16/20/26.

Battery or elecrticity 230v powered :Pliers with TH profile: Complete with battery, battery charger and power cable. ARTICLE AVAILABLE ON ORDER. Delivery of ordering: 25 days.

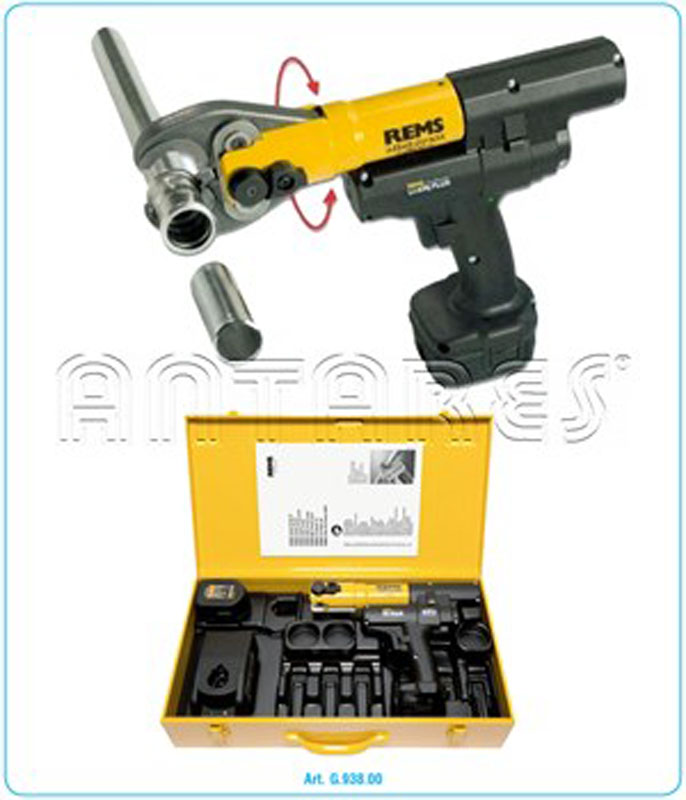

G.938

Battery powered Mini radial press with automatic return REMS Mini Press + carrying case.

Universal, super handy electric tool with automatic circuit control for producing pipe pressing joints for all common pressfitting systems. For battery and corded operation. Pipe pressing joints Ø 10 -40 mm Ø 3/8´ - 1 1/4´. Rems Mini-press ACC- universal up to Ø 40 mm. Super light, super small, super handy. With automatic circuit control. Secure crimping in seconds. Automatic locking of the pressing tongs.

G.939
