Met gietijzeren huls GG25. Roestvrijstalen naald en zittingen. Schaft 32 mm. Spanning 230 VAC. Looptijd: 2´ x 15 mm. Beschermingsgraad IP44. Max. laadvermogen 150 kg. Voor verbindingsflenzen zie Art. V.151
When the temp. of the panels is superior to that of the water in the boiler, the thermostat starts the pump the allows for temp exchange between the panels and the boiler. With clock visability of temp.of collector and boiler.Collector 0°-200°C Feed 230V exit conn. for pump to boiler 5A Dimensions 131x88x(H)27.2 Probes connectabile upto 100mt.
The thermostat SOLAR CONTROL is an electronic device built after many years of experience in the thermal control field by ANTARES. This device allows you to keep a precise control of the temperature deriving from the solar panels and to distribute the hot water into the tank. Through the sensors it will detect the temperature of the water supplied to the tank and it will compare it with the fluids in the solar panel. When the temperature of the panels is higher than the one from the tank, the differential thermostat starts the pump which allows the exchange of heat between panel and tank. To ensure a perfect exchange of temperature the device has a temperature differential “delta T” variable from 1 to 9 °C which is controlled by the handle on the front part of the thermostat. Temperature control : 30-80 °C. Adjustable range : 1-9°C Relay Outlet 10A 230V. Installation DIN bar (3 modules). Dimensions 53x90x58. Probes connected up to 100 mts. Complete with 2 switch-offs: pump for solar panels and pump for circuit integration.

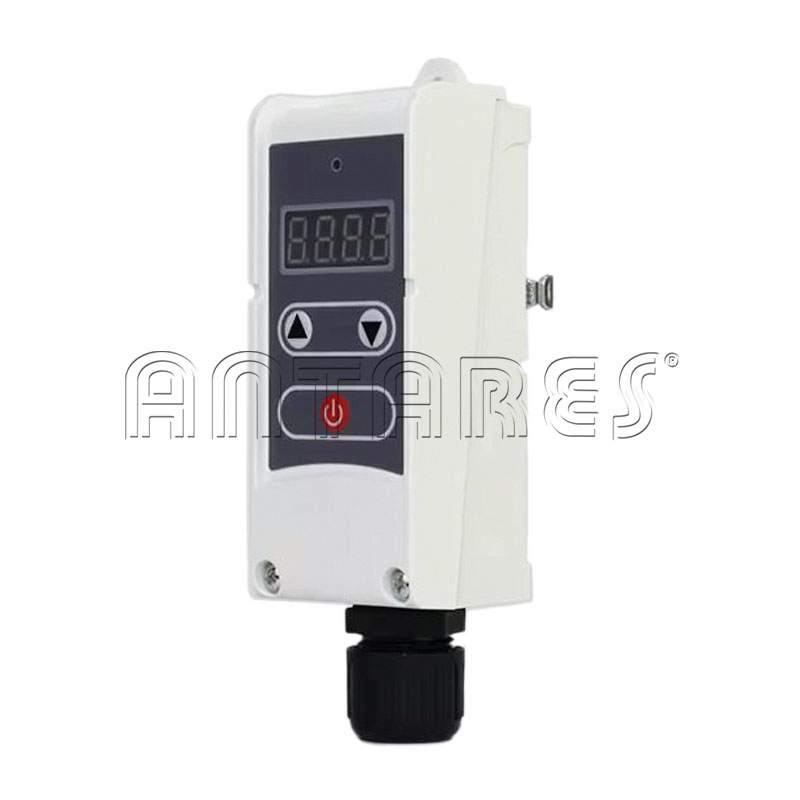

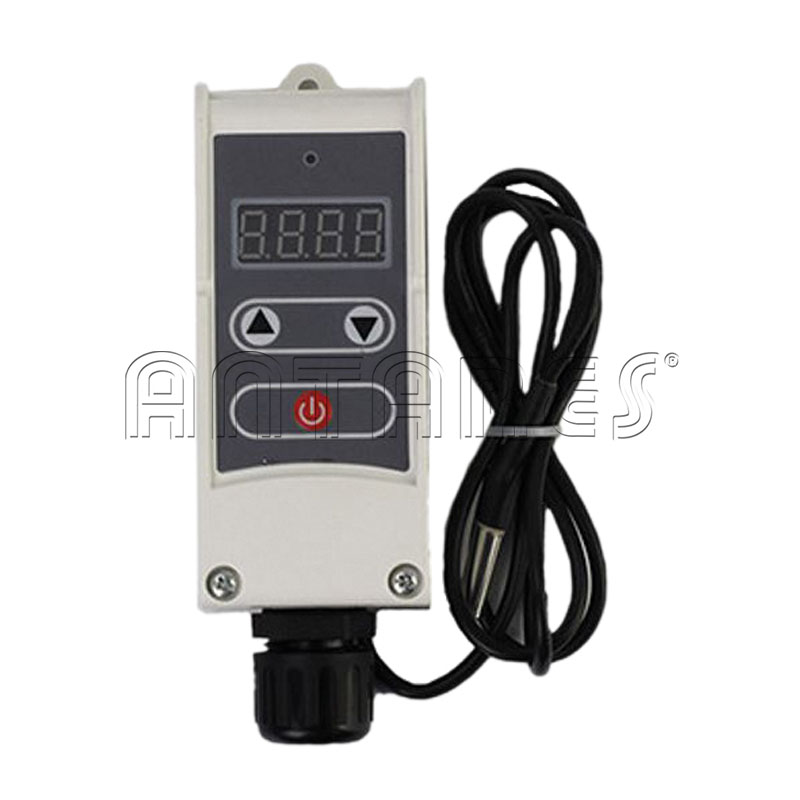

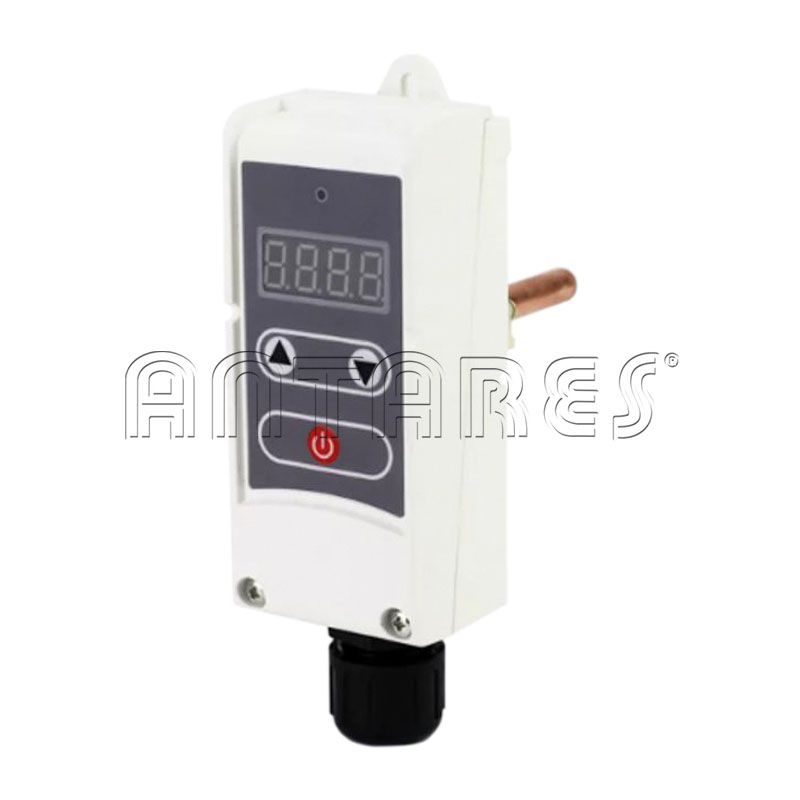

Detects the temperature with a sensor and controls the circulation pump. Audible alarm for temperatures over 90°C that works also if in FF position. GRILL switch. Anti-freeze protection with automatic start-up of the pump. Comes with cover and sensor. Supply:230V ~ 15%..60 Hz. Contacts 5A - 250 V ~ Temperature control: 30°÷90°C. Intervention differential ~ 1.5°C. Sensor type NTC. Temperature display: 20°C÷90°C. Protection grade IP30. With plastic casing for wall-mounting.
