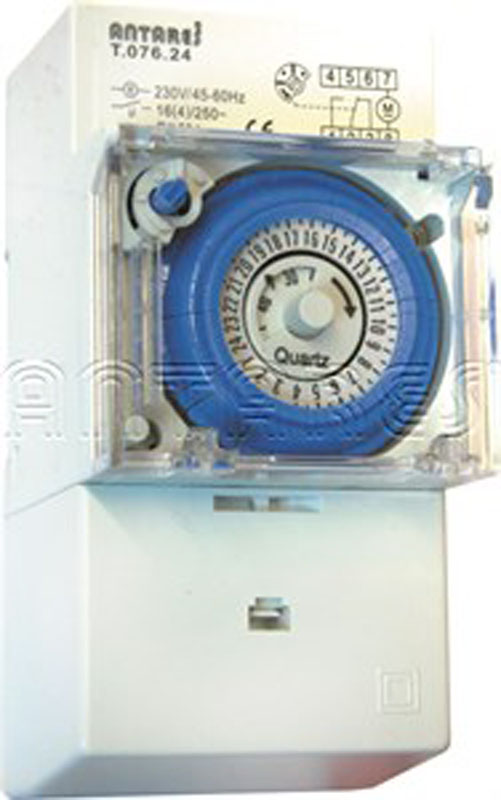

Dimensions: 54 x 88.5 mm. - Daily programming in sectors, with intervals of 15 min. 16A switching contacts.

Normally closed, in the absence of voltage it returns to closed. Equipped with lever for manual opening.

Normaal gesloten. Ingeval er geen stroom is, sluit het zich weer. Wordt geleverd met hendel voor manuele opening. Voor microbegrenzingsschakelaar zie Art. T.093.00.

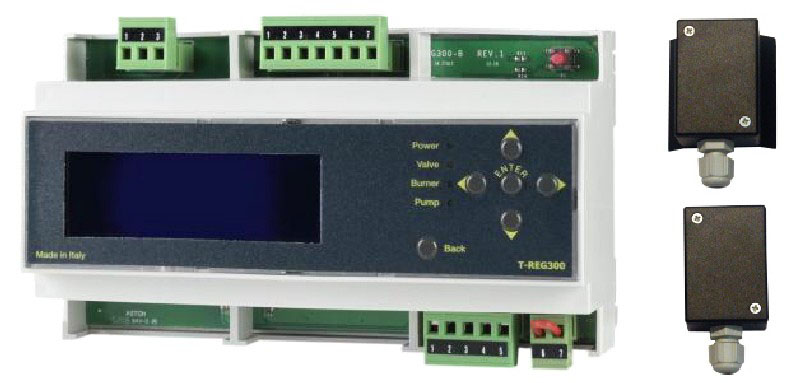

It is an electronic device of advanced conception that allows to keep under precise control the surrounding enviroment temperature. This control unit acquires temperature data from the probes and adapts the heating fluid to the climatic needs desired, allowing great comfort. Programming is very easy, you just follow the instructions requested setting them straight on the display. This model T.Reg. 300 is a versatile device which allows the operator to choose how it should function connecting it to mixing valves (proportional integral functioning) or burners (ON - OFF function). These technical characteristics make it ideally installable for the control of heating in civil and industrial plants.Constant deisplay of all the system’s elements ; graphic display, back light. Dimensions: 158x90x58x installement on panel on bar Omega EN 50092 with shift buttons for programming and control of temperature coming from probes. Constant visibility of all the temperatures of the heating system. Languages for installement forseen in: English, Italian, Spanish, and French. Daily or weekly clock included; possible programming of temperature desired daily in the week. Possible selection of mode; valve or burner - automatic or manual - off, control of circulating pump, visibility and mode of the performance range. Consult documentation that you can download for more details

Spanning: 230V - 50Hz. Met microbegrenzingsschakelaar 5A. Werkdruk 10 bar. Bescherming IP40.

Spanning 230 V - 50Hz - Looptijd: 90 sec.

Met gietijzeren huls GG25. Roestvrijstalen naald en zittingen. Schaft 32 mm. Spanning 230 VAC. Looptijd: 2´ x 15 mm. Beschermingsgraad IP44. Max. laadvermogen 150 kg. Voor verbindingsflenzen zie Art. V.151

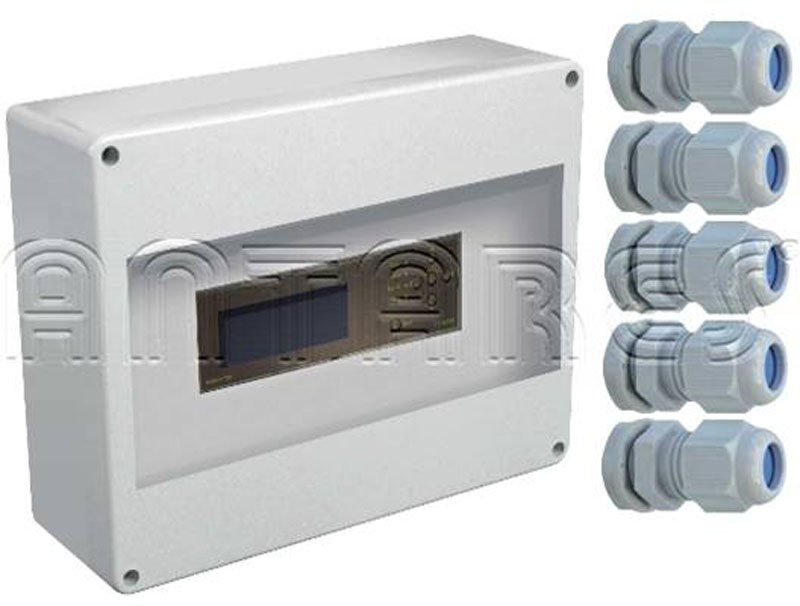

Dimensions: 240 x 190 x 87 - Suitable for adapting electronic device Art. T.101.07.

Schaal: ± 5°C - Afmetingen: 66 x 31 x 89 mm.

Art. T.109.40 - Complete with joint for valves Art. E.140 and Art. E.141.

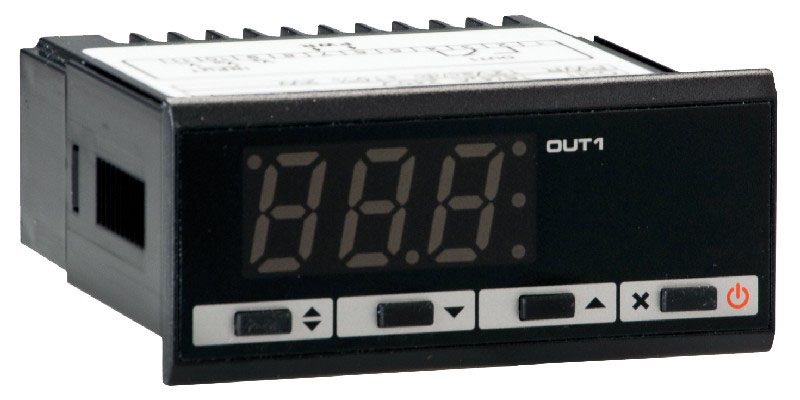

Resolutie: 0,1°C - Voeding 220 V.a.c.//50Hz - Relais uitlaat 16(4)A 240Vac. Temperatuursschaal: -40° C ÷ 105° C.
