When the temp. of the panels is superior to that of the water in the boiler, the thermostat starts the pump the allows for temp exchange between the panels and the boiler. With clock visability of temp.of collector and boiler.Collector 0°-200°C Feed 230V exit conn. for pump to boiler 5A Dimensions 131x88x(H)27.2 Probes connectabile upto 100mt.

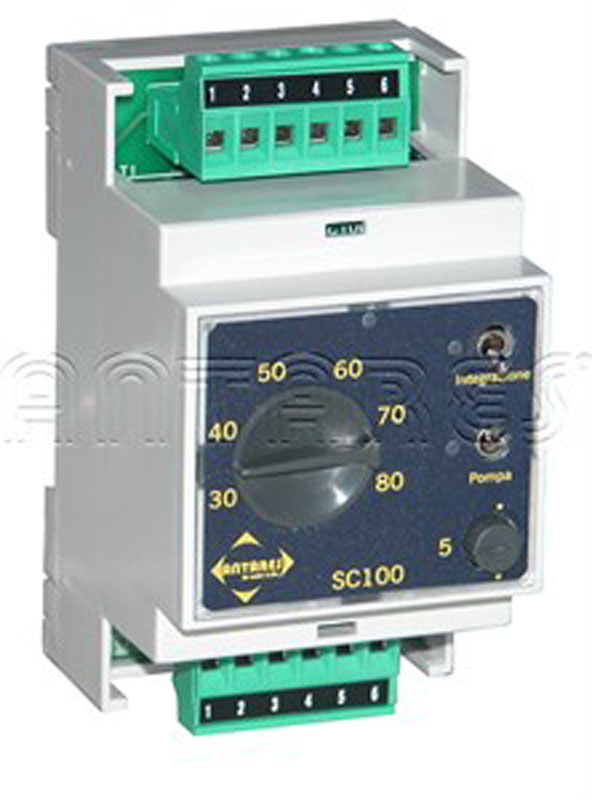

The thermostat SOLAR CONTROL is an electronic device built after many years of experience in the thermal control field by ANTARES. This device allows you to keep a precise control of the temperature deriving from the solar panels and to distribute the hot water into the tank. Through the sensors it will detect the temperature of the water supplied to the tank and it will compare it with the fluids in the solar panel. When the temperature of the panels is higher than the one from the tank, the differential thermostat starts the pump which allows the exchange of heat between panel and tank. To ensure a perfect exchange of temperature the device has a temperature differential “delta T” variable from 1 to 9 °C which is controlled by the handle on the front part of the thermostat. Temperature control : 30-80 °C. Adjustable range : 1-9°C Relay Outlet 10A 230V. Installation DIN bar (3 modules). Dimensions 53x90x58. Probes connected up to 100 mts. Complete with 2 switch-offs: pump for solar panels and pump for circuit integration.

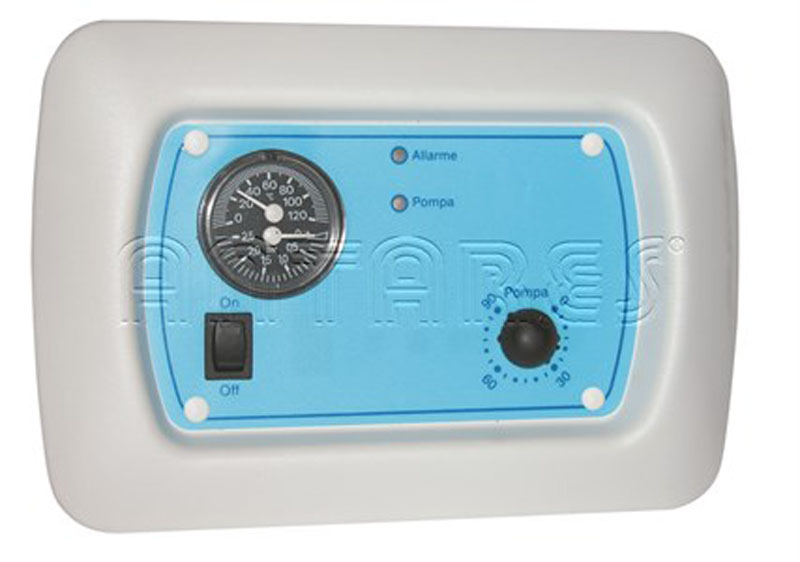

Detects the temperature with a sensor and controls the circulation pump. Audible alarm for temperatures over 90°C that works also if in FF position. GRILL switch. Anti-freeze protection with automatic start-up of the pump. Comes with cover and sensor. Supply:230V ~ 15%..60 Hz. Contacts 5A - 250 V ~ Temperature control: 30°÷90°C. Intervention differential ~ 1.5°C. Sensor type NTC. Temperature display: 20°C÷90°C. Protection grade IP30. With plastic casing for wall-mounting.

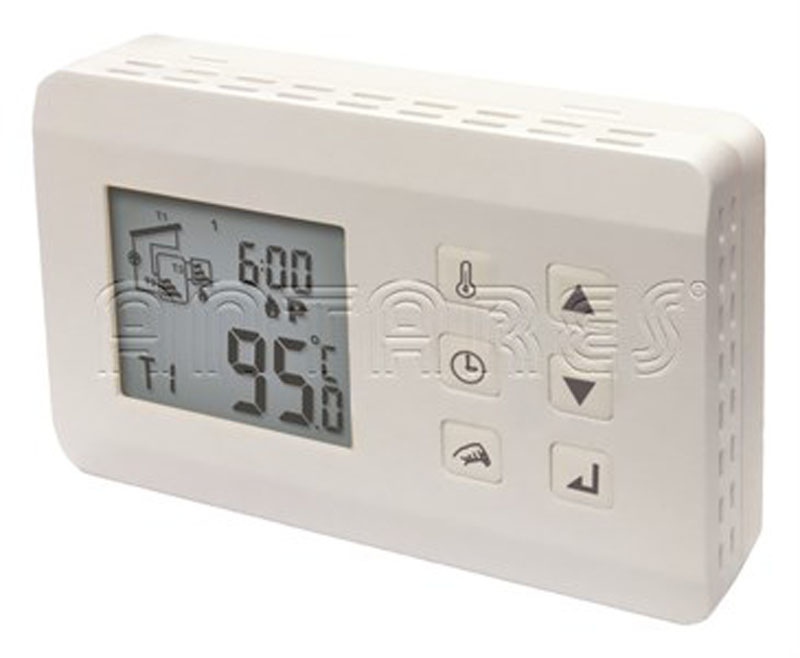

When the temperature of the panels is higher than that of the water in the boiler, the control unit starts the pump that allows the exchange of heat between the panel and the boiler. To ensure perfect temperature exchange, the appliance is equipped with a ´Delta T´ temperature differential variable from 3 ° to 15 ° C which can be adjusted with the buttons on the front of the control unit. It allows the integration of both sanitary water and the traditional heating system. Configuration of the four different solar systems: 1st boiler panel system. 2nd boiler panel system + storage boiler with automatic temperature control. 3rd Heating system integration system with automatic control. 4th Integration system to the swimming pool system with automatic control. Domestic hot water priority. Power supply 230V - Temperature reading range: -20 ° C - 120 ° C. Fixing: on electrical panel on DIN omega bar - 9 modules.

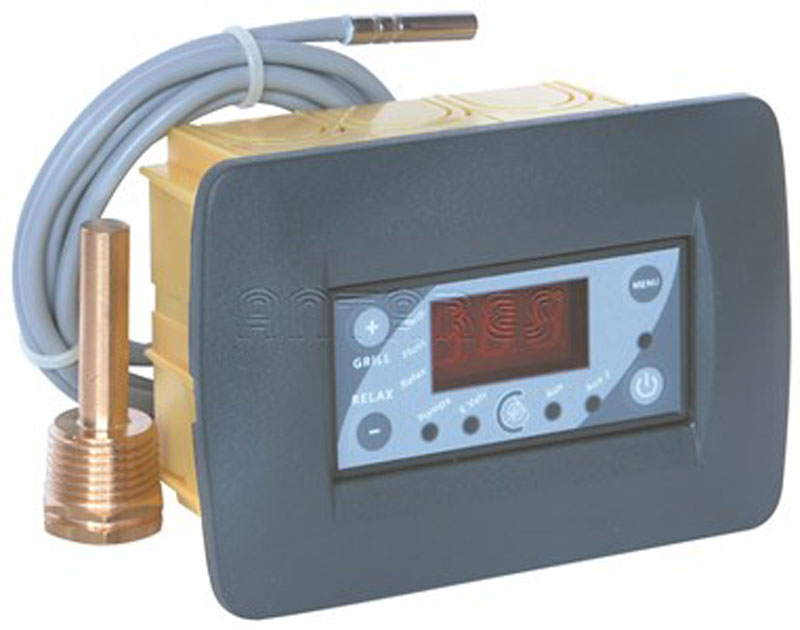

Geeignet zur Installation in 3 Modul DIN Einlassgehäusen. Ausgestattet mit Software zur Kontrolle und Verwaltung der von den Sonden übermittelten Signale. Reguliert automatisch die Geschwindigkeit der Pumpen je nach Wassertemperatur im Thermokamin. Ausgestattet mit Display zur Temperatur- und Funktionsanzeige. Ausgestattet mit Lichtsignalen die die verschiedenen Stadien der Funktionen anzeigen. Mit visuellem und akustischem Alarm bei auftretenden Anomalien. = = = Das Steuereinheit verfügt über verschiedene integrierte Funktionsprogramme, die vom Menü aus wählbar sind. So lässt sich das Gerät an die unterschiedlichen Typologien der vorhandenen Anlage anpassen. Dank der Relax-Funktion erhält man ausschliesslich warmes Sanitärwasser, wobei die Heizung momentan ausgeschlossen bleibt. Merkmale und Ausstattung: - Eingang Wassersonde, Temperaturbereich 30-99°C - Eingang NO ( normal offen) für Druckflusswächter - Relais-Ausgang 220 Volt für Kreislaufpumpe 1 - Relais-Ausgang 220 Volt NO und NC für Elektroventil - Relais-Ausgang mit freien Hilfsschalter AUX - Relais-Ausgang 220 Volt für Kreislaufpumpe 2 oder Grill - 3 Din Module in eigebautem Gehäuse

Kan gemonteerd worden met Art. V.053 en V.054

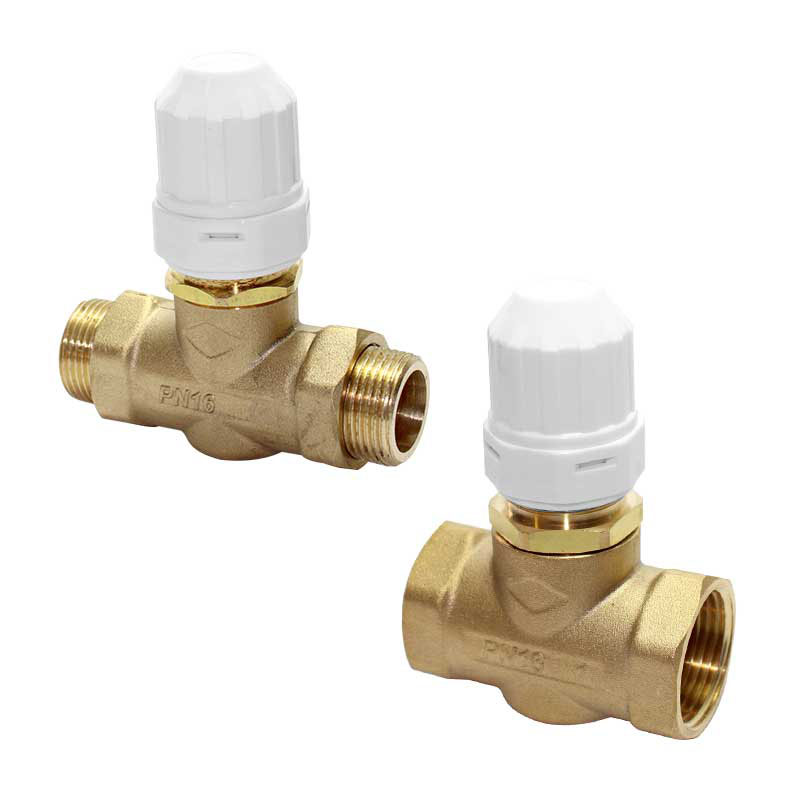

Can be combined with thermostatic actuators art. T.130.70 and electrical actuators art. V.058, connection 30 x 1.5.
