Connections 1´ With connections for high temperature ¾´ KV mix:3.5

Connection 1´ With connections for high temperature ¾´

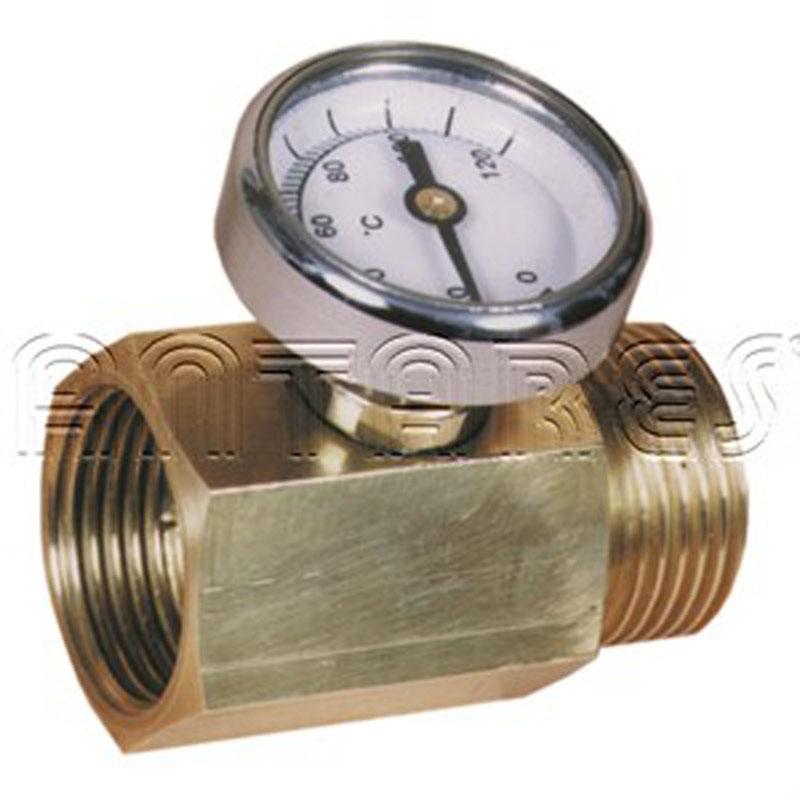

Sheath type: length 30 mm. - internal Ø 9 mm.

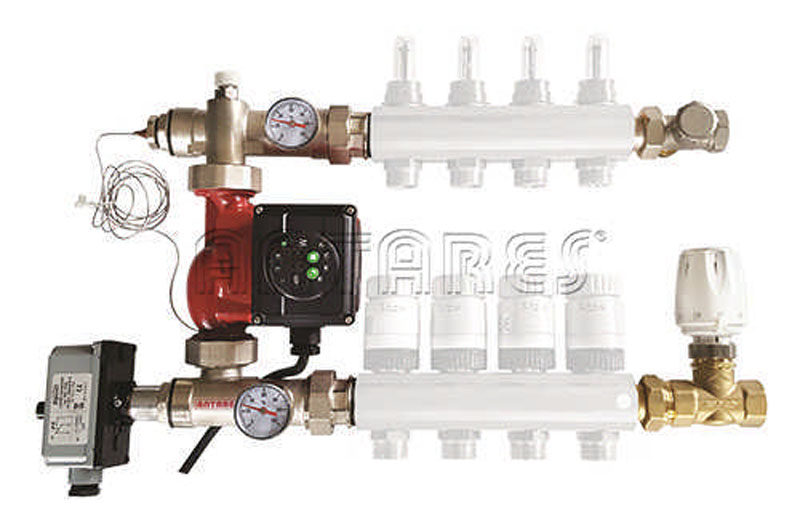

Composed of: Circulation pump in energy class “A”delivery 6mt Thermostatic valve with setting 20°- 50°C Balancing lockshield One way flow valve Temperature thermometer Safety thermostat with reset for stopping the circulator in case of accidental exceeding of set temperature (in respect of European legis. 2008/125/CE) Neccessary 3 piece preset fittings for connecting manifolds N.B. manifolds are not included in the price.

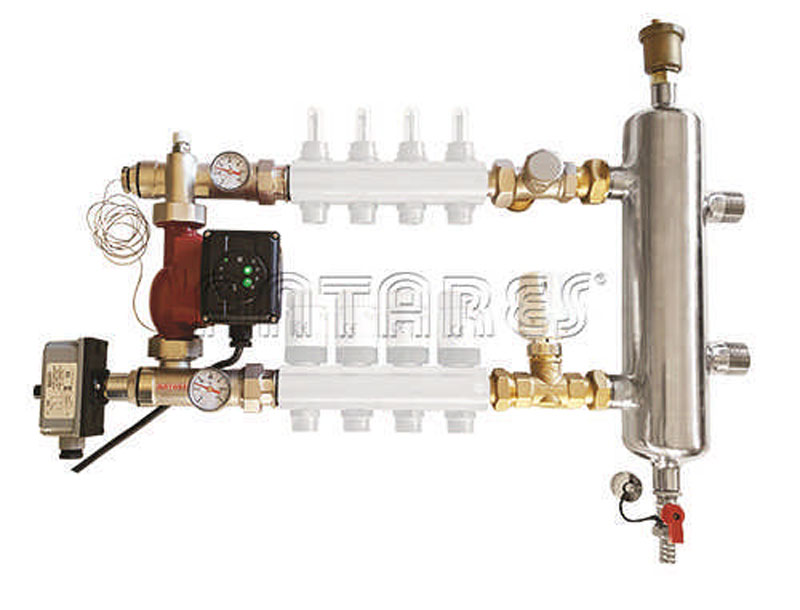

Composed of: Steel hydraulic compensator on primary circuit of boiler with flow from 3mc/h with thickness 75mm, apt to be lodged together with the manifolds in fitted cabinets – art G.173 and G.174. Circulation pump energy class “A” 6mt Thermostatic valve setting 20° - 50°C Balancing lockshield One way flow valve 2 temperature themometers Safety thermostat with reset for stopping the circulator in case of accidental exceeding of set temperature (in respect of European legis. 2008/125/CE) Neccessary 3 piece preset fittings for connecting manifolds N.B. manifolds are not included in the price.

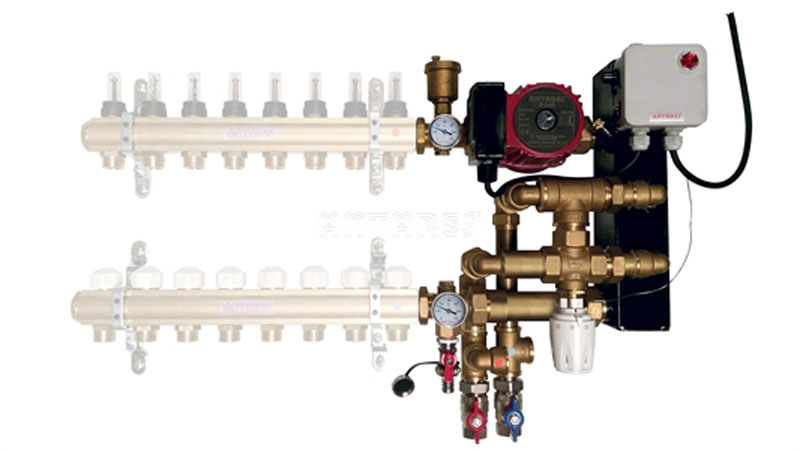

Composed of: N.B. manifolds are not included in the price. Circulation pump energy class “A” 6mt 4 way mixing valve Servomotor opening and closing of the mixing valve predisposed for connection to control unit (our art T.101.07 or other makes). 2 temperature thermometers 2 flow control and stop valves Air vent valve Safety thermostat with reset for stopping the circulator in case of accidental exceeding of set temperature (in respect of European legis. 2008/125/CE) Neccessary 3 piece preset fittings for connecting manifolds

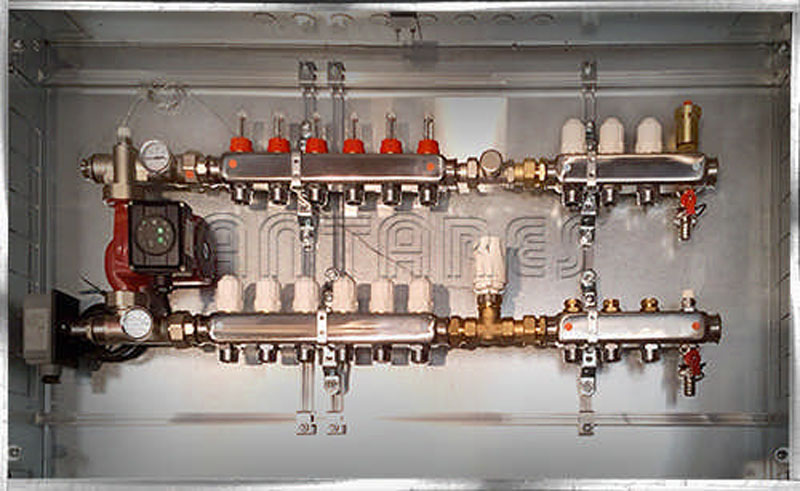

Composed of: Mixing group art G.211.10 Couple manifolds Art g.081 complete of: Connection of lockshields ¾´ euroconus Valves for the application of electtric actuators Flow regulators Automatic deareator Drain cocks Support brackets High temperature manifolds, if planned for Container cabinet Art G.174 See dimensions in table

Composed: Mixing group art G.212.10 equipped with hydraulic compensator Couple manifolds Art g.081 complete of: Connection of lockshields ¾´ euroconus Valves for the application of electtric actuators Flow regulators Automatic deareator Drain cocks Support brackets High temperature manifolds, if planned for Container cabinet Art G.174 See dimensions in table

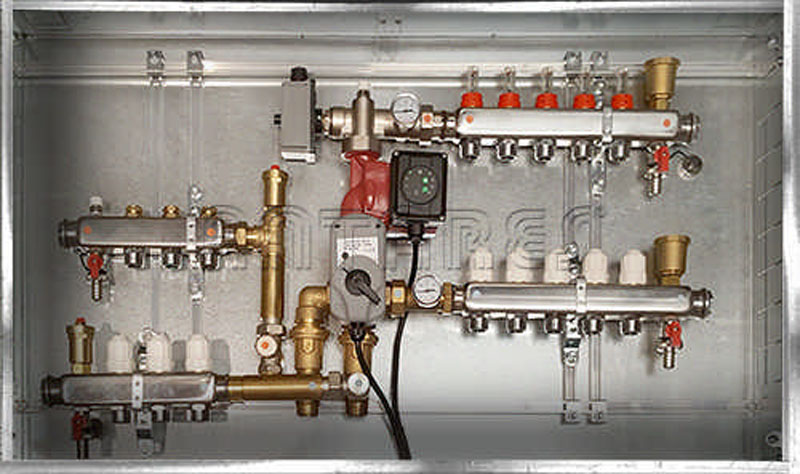

Composed: A) Mixing group Art G.220.10 complete with 4 wat mixing valve motorized three points controllable by a climatic control unit non included. B) Couple manifolds Art g.081 complete of: Connection of lockshields ¾´ euroconus Valves for the application of electtric actuators Flow regulators Automatic deareator Drain cocks Support brackets High temperature manifolds, if planned for Container cabinet Art G.174 See dimensions in table
