A.042

Coil of 50 m polyethylene capillary hose for watering systems. External Ø 6 mm - Internal Ø 4 mm - Thickness 1 mm.

B.120

Chrome - plated safety valve for all types of gas - DIN 33833 - complete with thermic saferty that closes when temperature reaches 96°C. According to European Legislation EN 14800.

The safety hose can be connected only when there is no flow. ON/OFF position is indicated by a control light. Connection 1/2´ M. DIN 2999. DVGW tested and approved.

B.121

Metallic flexible hose for connection to domestic gas appliances ´EUCOOKERHOSE´. In accordance with the new european regulation EN 14800.

Made up of steel spirals with metallic net sheath and another protective plast sheath DN12. Complete with washers for gas.

B.124

Safety tube.

Safety tube for all types of gas. Internal and external in steel with connecting cap DIN 3383 for connection to all types of safety valves or taps. Connection 1/2´ F.

B.200

Coil mt 25 sheath of self-extinguishing PVC with smooth surface.

(Class VL 94 VO). For the insertion of natural gas and LPG pipes in compliance with the provisions of the UNI CIG 7129 and 7131 regulations.

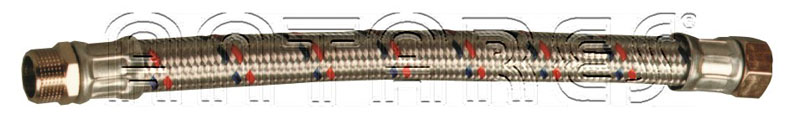

D.040

Vibration-dumping flexible hose. Connections: M. x F. swivel nut in flat seat. Max. Temp.:85°/90°C. Pressure 6 bar.

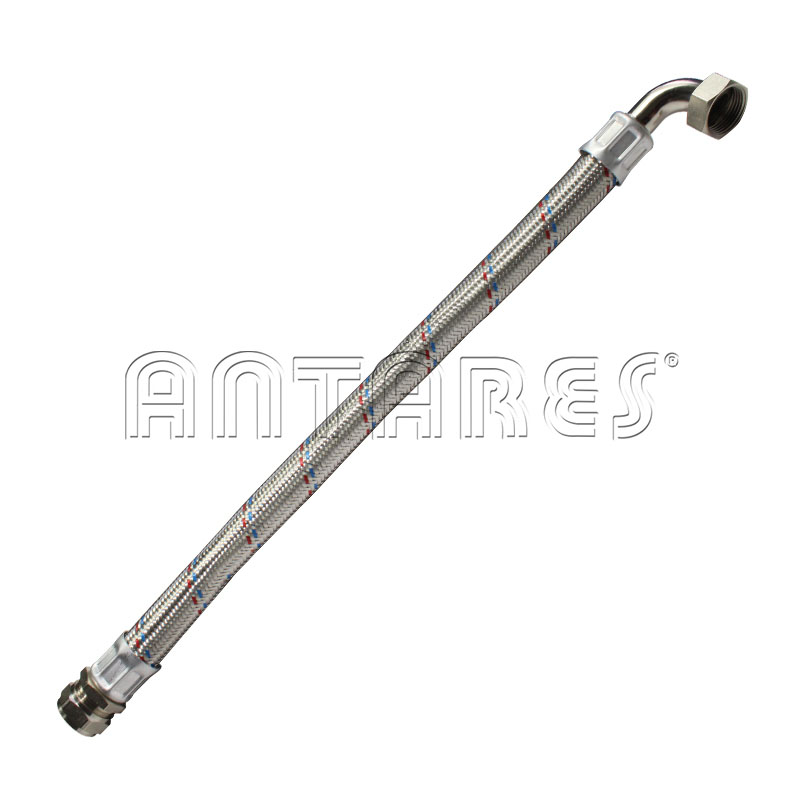

D.042

Vibration-dumping flexible hose. Connections: M. with curved end with F. swivel nut in flat seat. Max. Temp.: 95°C. Pressure 6 bar.

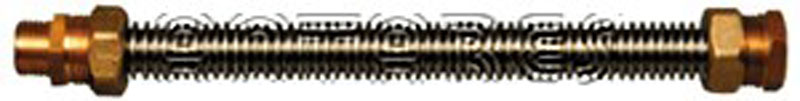

E.325

´INOFLEX´ flexible hose in tempered stainless steel, parallel braiding - can be cut to measure, w. M. F. brass fittings.

Max. Pressure: 6 bar - Max. Temperature: from - 40° C / + 550° C.

E.326

´INOFLEX´ hose in hardened steel parallel braiding, cut to measure with brass fittings M.F. and isolating shealth in EPDM 8 mm.

Max working pressure: 15 bar. Max temp. from -40°C to +150°C

E.327

Elastic compensation joint in threaded neoprene with 3-piece fitting F.F. in zinc-plated cast iron.

Certified for installation on drinkable water systems. Max temp 10-105C° Absorption capacity 22 mm compression 6 mm .Possible displacement 22 mm.

E.329

Elastic compensation joints in flanged neoprene PN16 in galvanised steel.

Certified for installation on drinkable water systems. Max temp. 10-105C°.

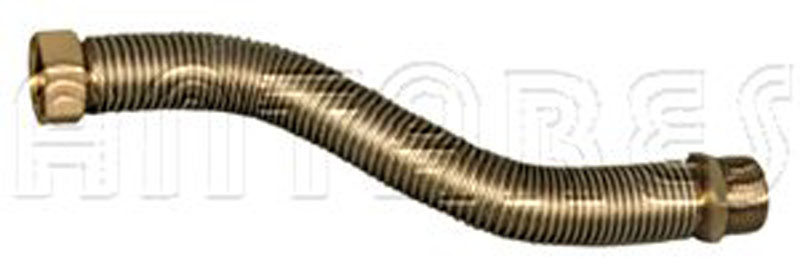

E.330

Stainless steel extensible flexible hose AISI 316 accordance with leg. UNI 11353, approved for connections with solar of water or water systems . Max pressure 10 bar. Max temp. 150°C. Complete with washers. .

Max. pressure: 10 bar - Max. temperature: -20°C to +110°C.
